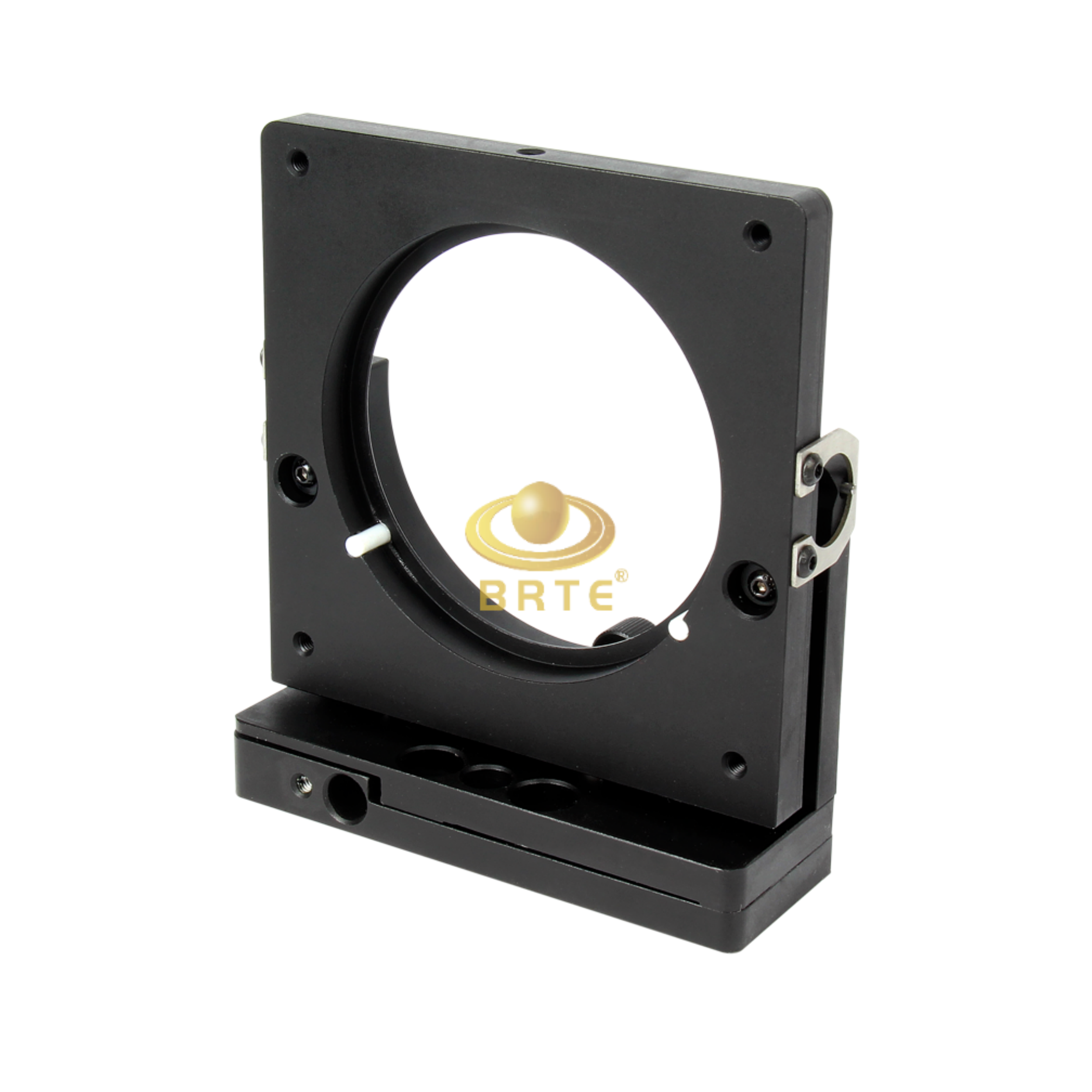

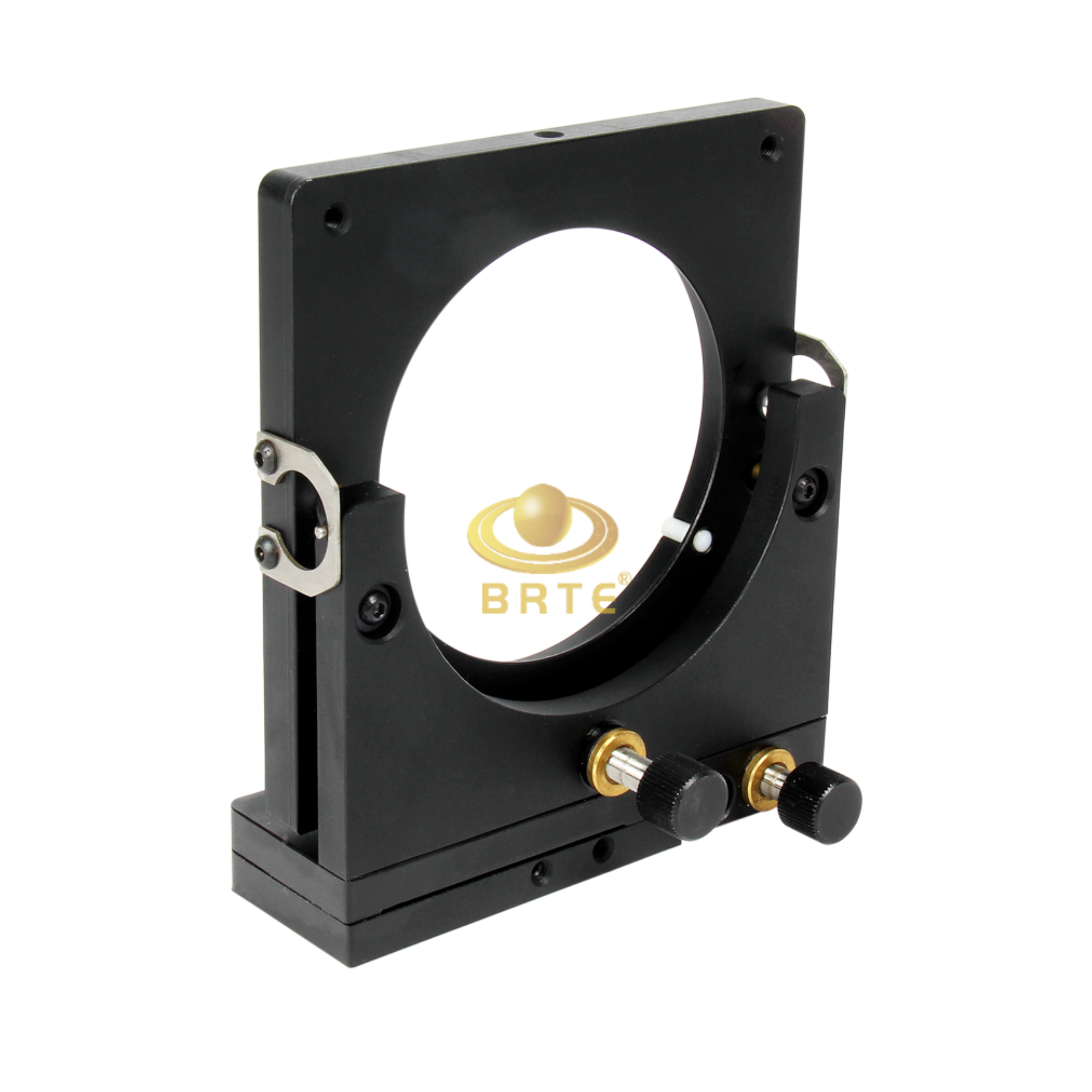

BRTE7MM08106 Two-axis Adjustable Mirror Mount
QR code
Detail
PRODUCT CHARACTERISTICS：
The lens can be adjusted orthogonal coplanarity intwo-dimensions to ensure the optical distance notchanged
M6X0.25 fine thread for adjustment (with copper nut）
Belleville spring for reset. reset force can be adjusted, from zero to rigidity
Three PTFE supporting, protecting lens
PRODUCT SPECIFICATIONS：
Product Name | Two-axis Adjustable Mirror Mount |
Product Model | BRTE7MM08106 |
Diameter of Lens A | 106 |
Aperture B | 101 |
C | 50 |
D | 86 |
L | 90 |
H | 151.5 |
T | 132 |
Adjustment range | ±3° |
Weight/g | 577 |

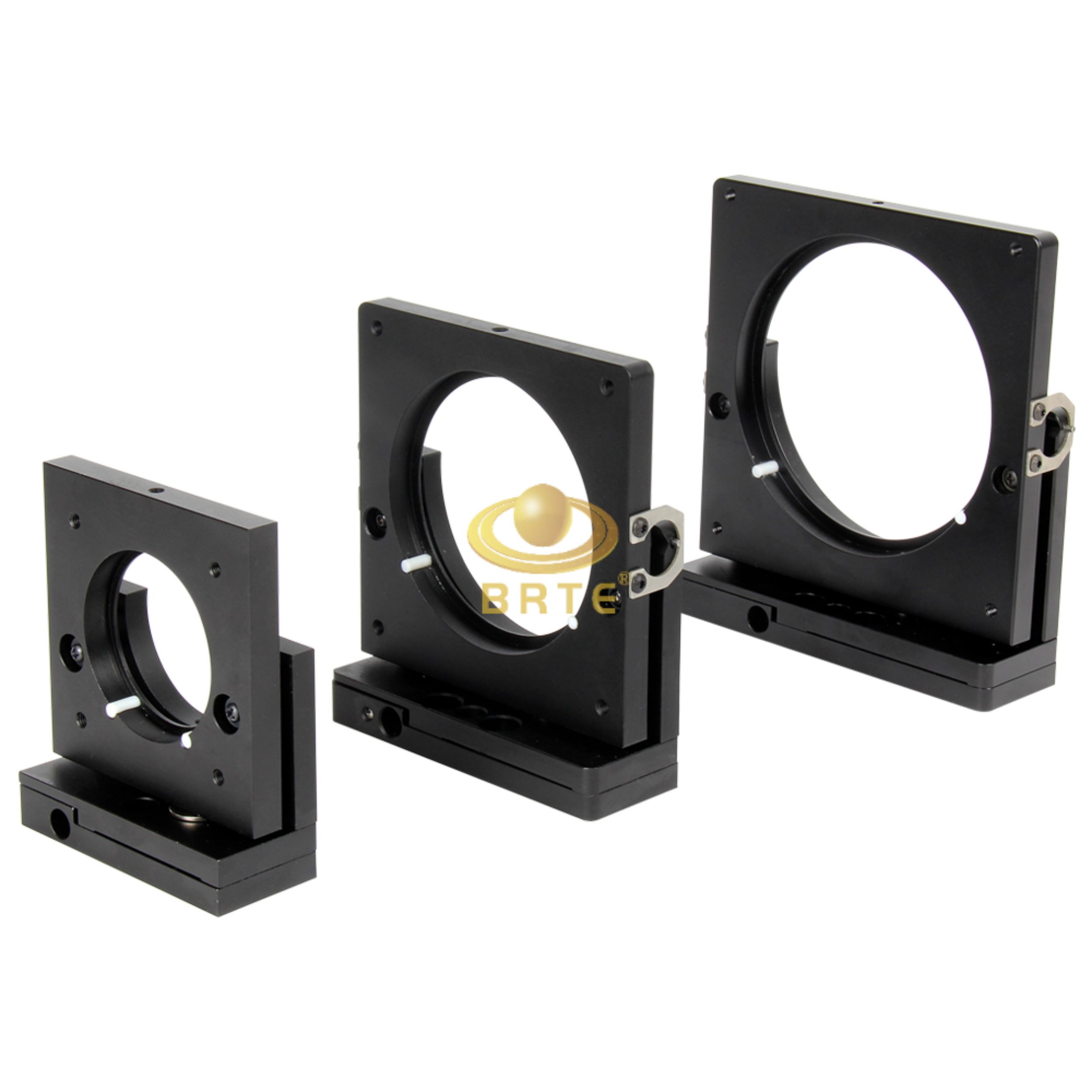

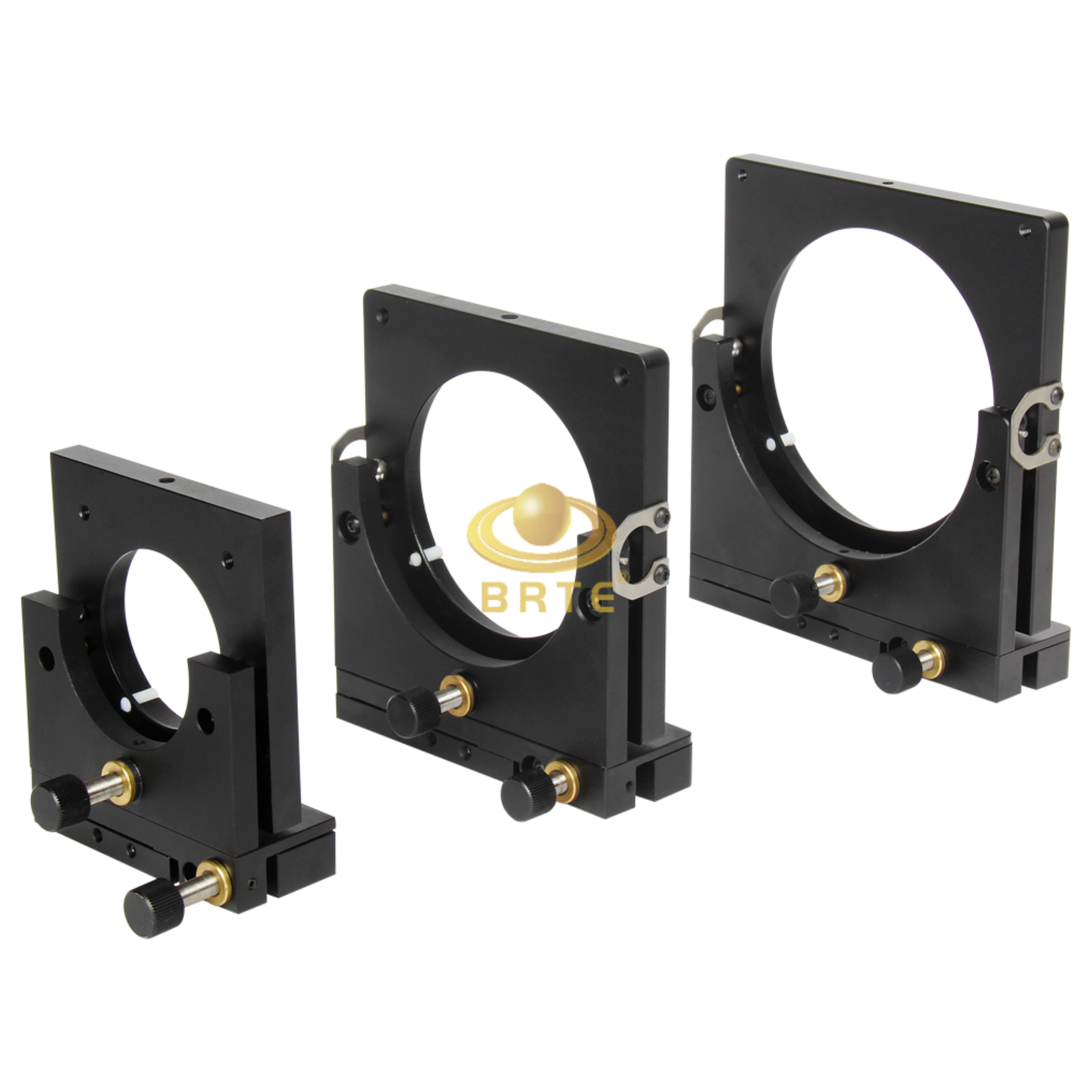

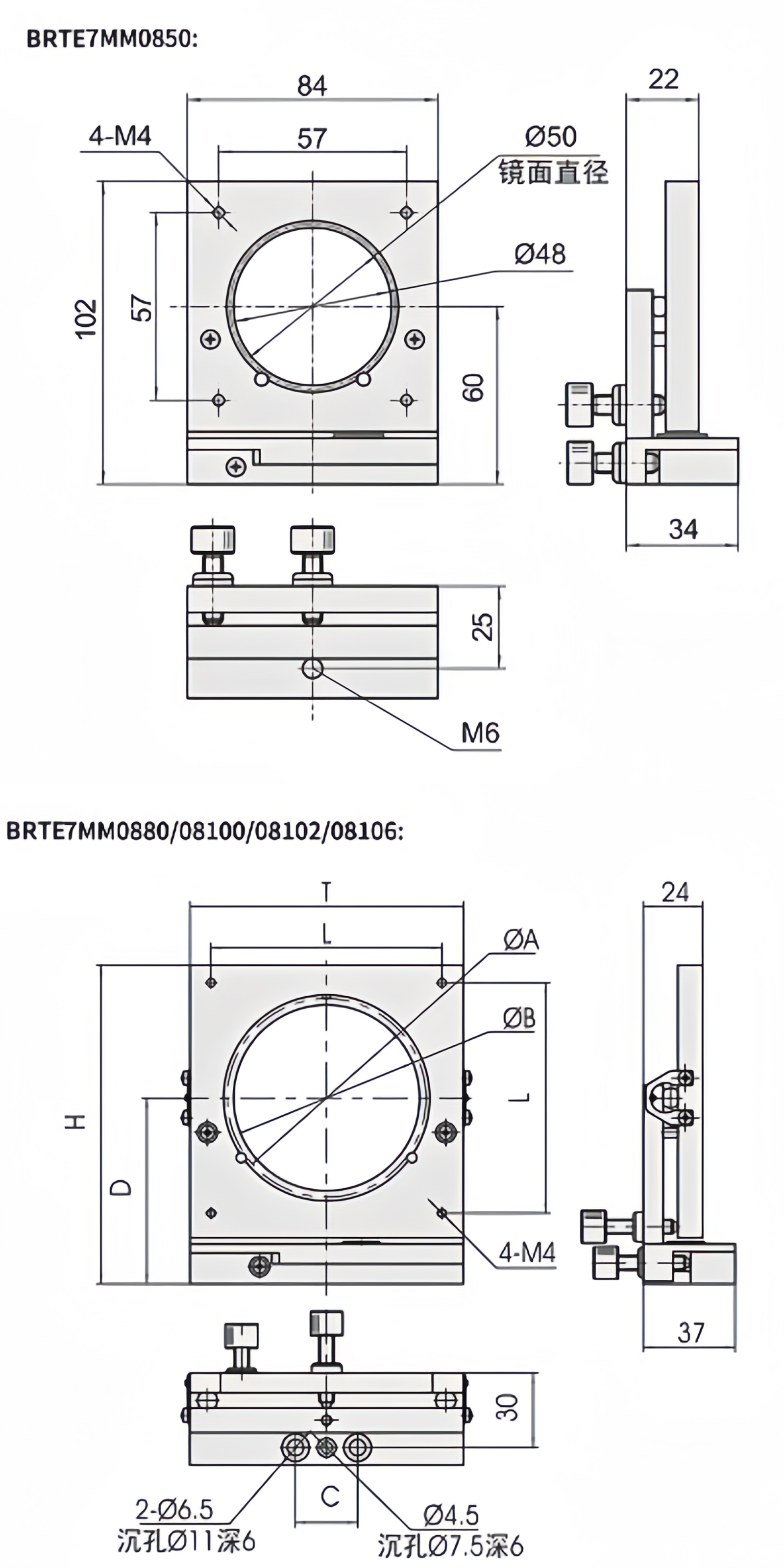

PRODUCT DRAWING AND THE SAME SERIES：
