BRTE7MM07762 Two-axis Adjustable Mirror Mount
QR code
Detail
PRODUCT CHARACTERISTICS：
M6 × 0.25 fine thread adjustment (partly with copper nut)
High performance tension spring for reset with uniform resetting force to reducestress
Range of adjustment ±3°
Three PTFE supporting, protecting lens
Mounting holes in two directions, suitable for different optical path
PRODUCT SPECIFICATIONS：
Product Name | Two-axis Adjustable Mirror Mount |
Product Model | BRTE7MM07762 |
Weight/g | 166 |

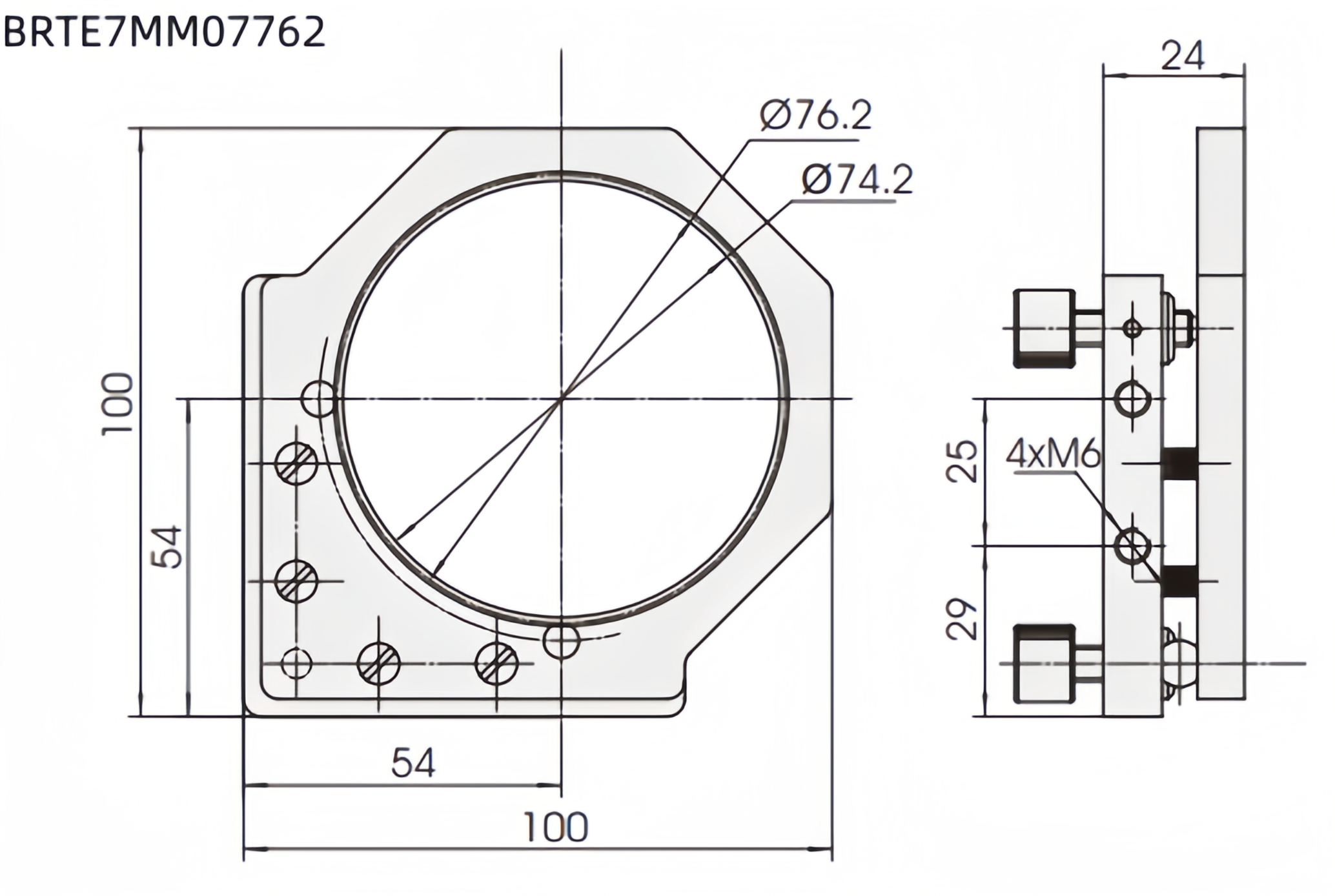

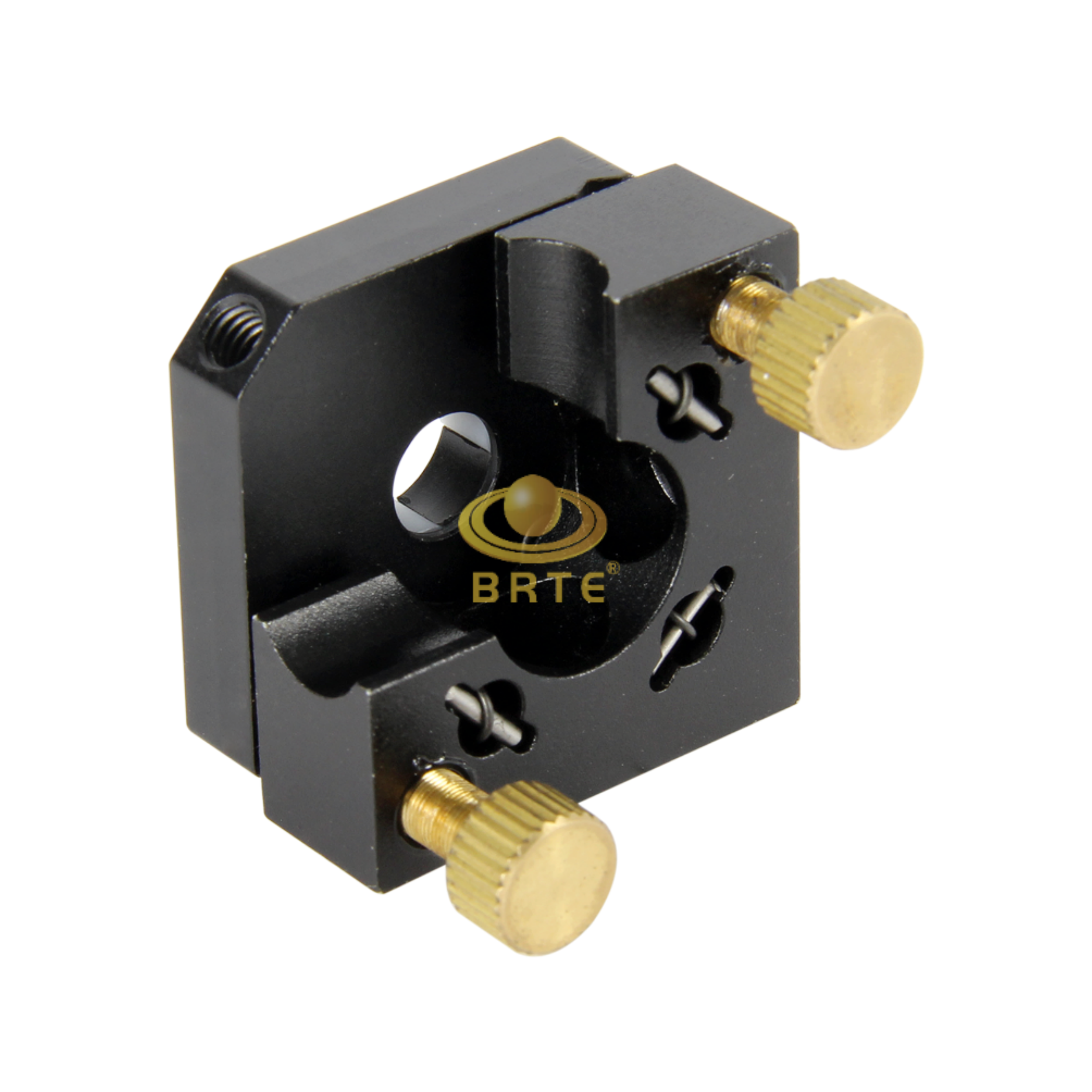

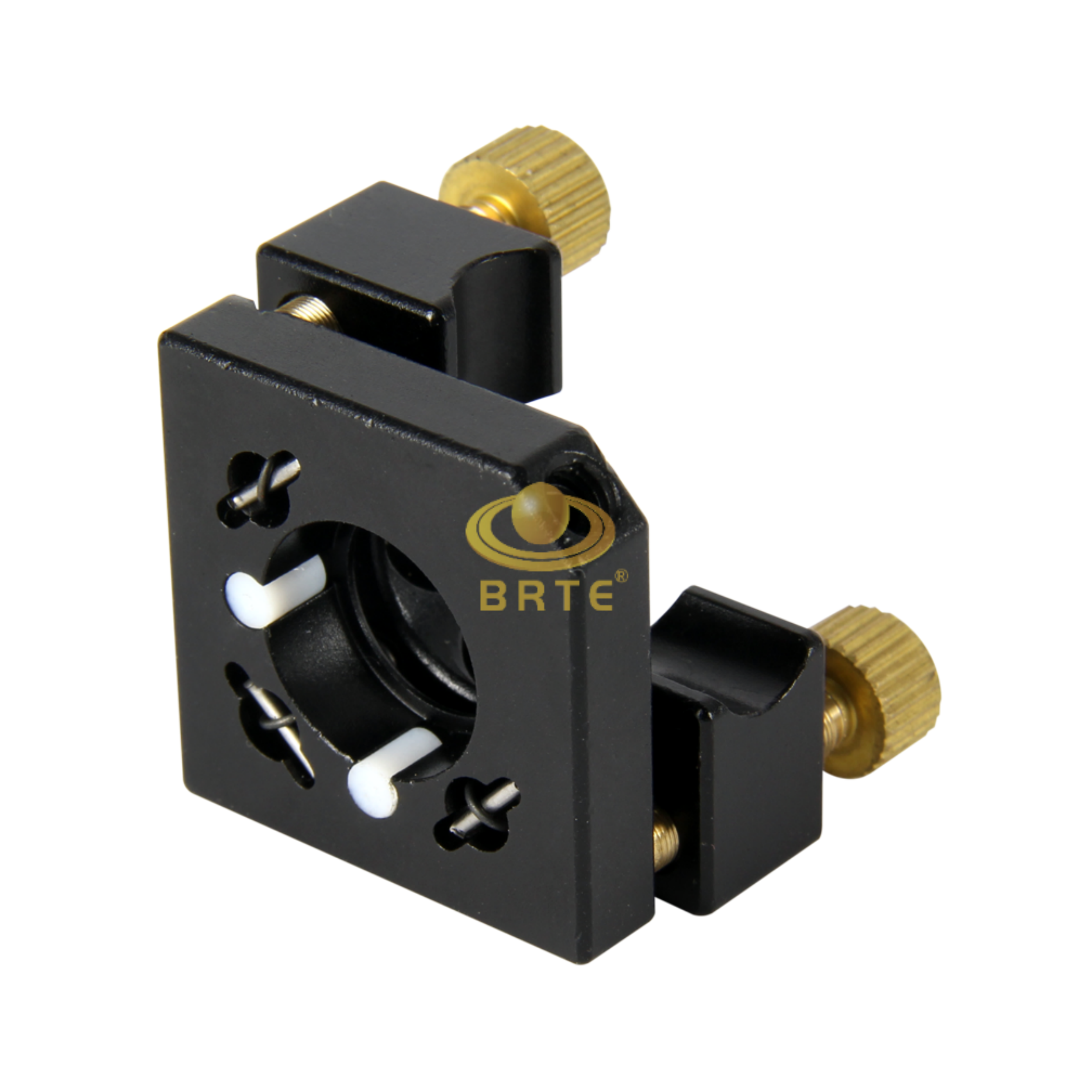

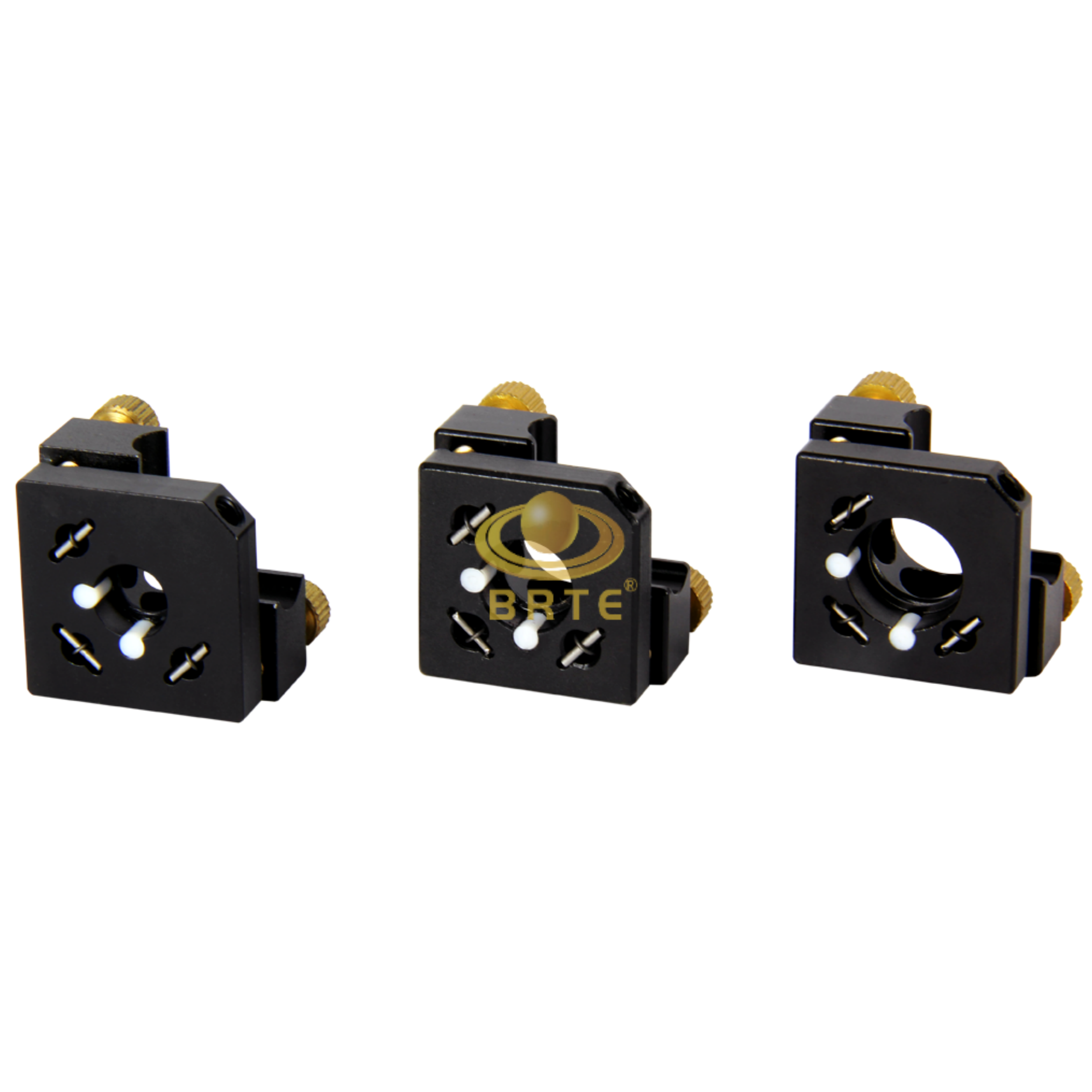

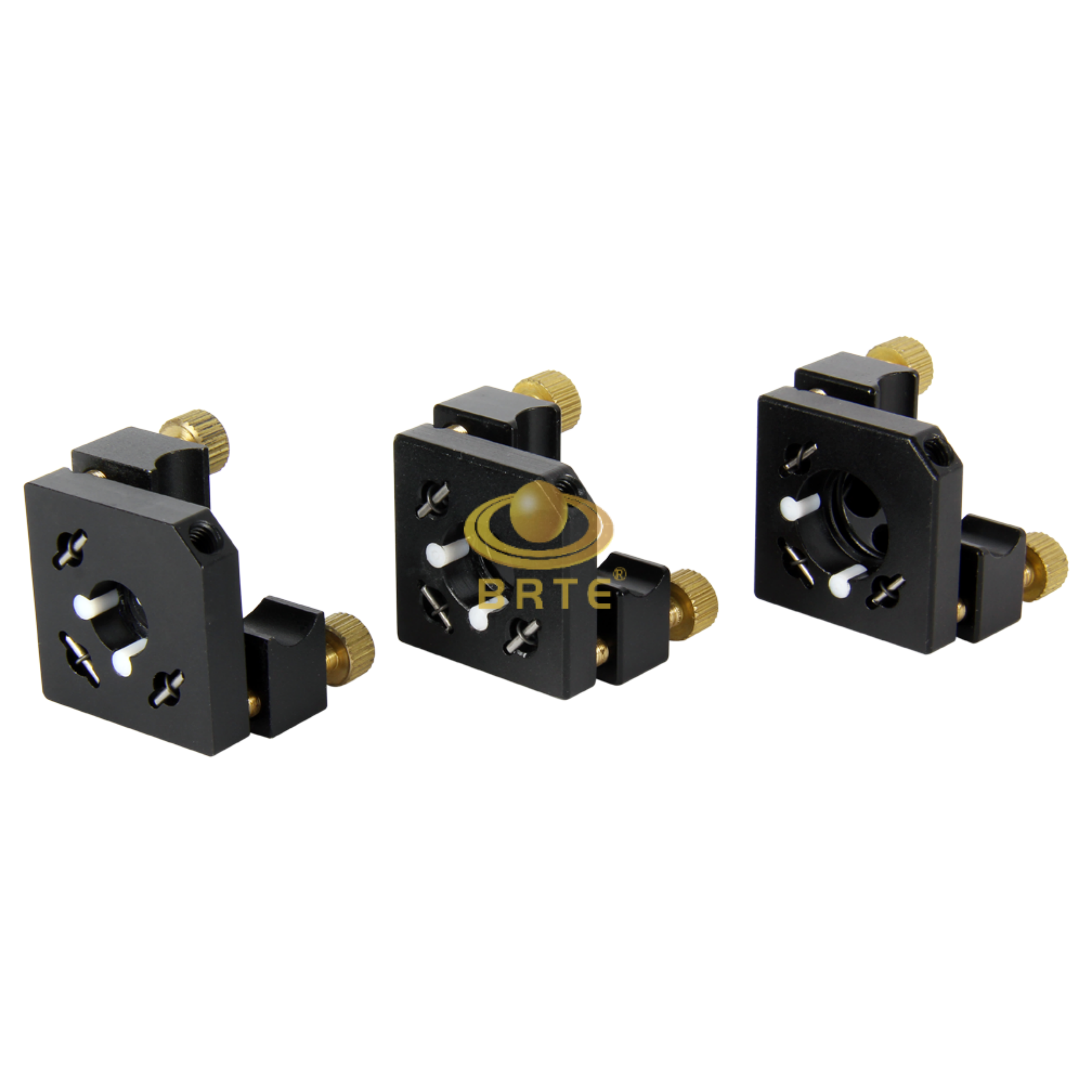

PRODUCT DRAWING AND THE SAME SERIES：
