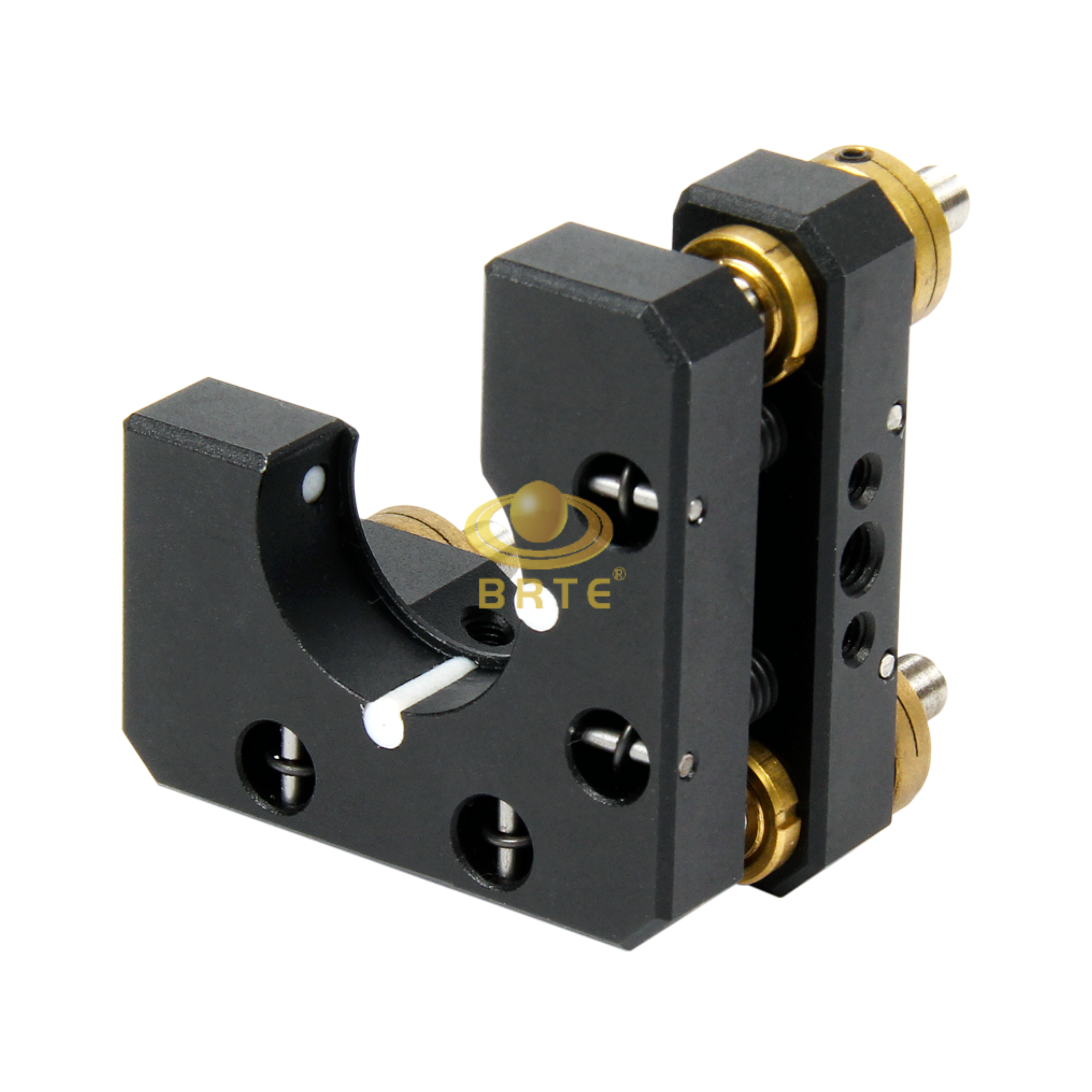

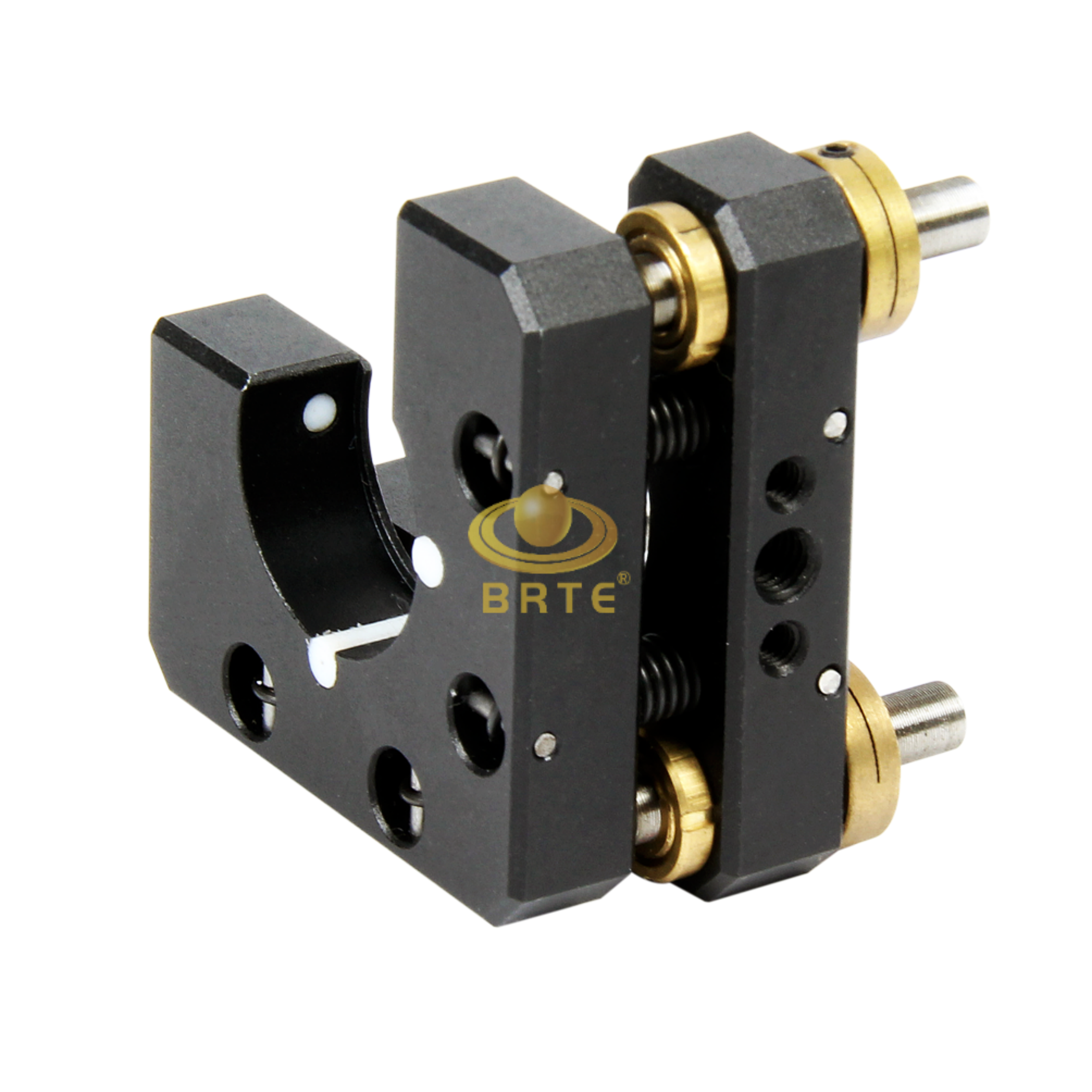

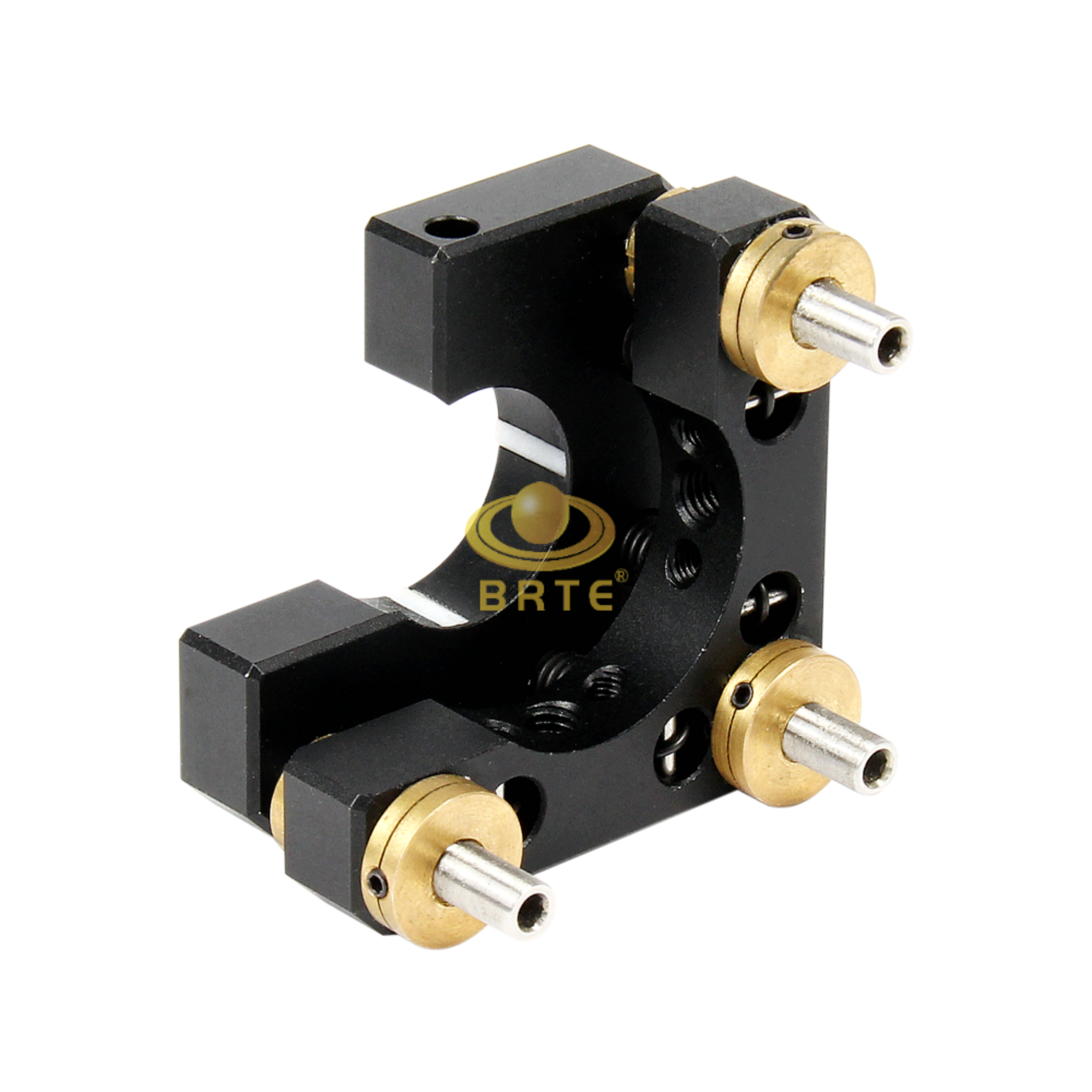

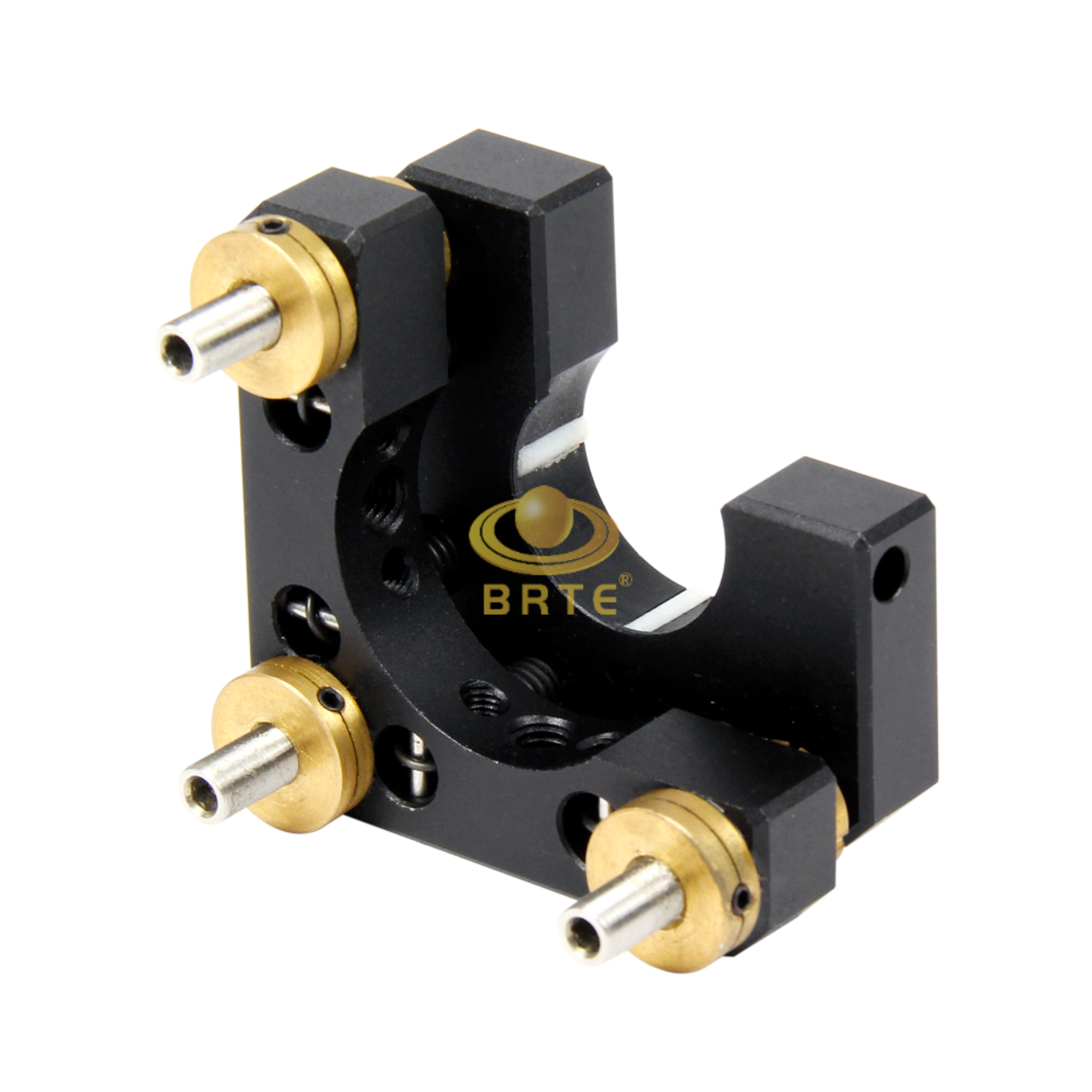

BRTE7MM2115 There-axis Adjustable Mirror Mount
QR code
Detail
PRODUCT CHARACTERISTICS：
M6 X0.25 fine thread for adjustment with special coppernut, which can be locked radially to prevent looseningcaused by vibration
Range of adjustment ±3°
One-dimensional axial translation and two-dimensionalinclination adjustment
High performance tension spring for reset with uniformresetting force to reduce stress
Open structure, fast clamping, larger aperture
Three PTFE supporting, protecting lens
Mounting holes in two directions, suitable for different optical path
PRODUCT SPECIFICATIONS：
Product Name | There-axis Adjustable Mirror Mount |
Product Model | BRTE7MM2115 |
A | 60 |
B | 30 |
Diameter of Lens C | 15 |
Aperture D | 14 |
E | 46 |
Inclination range /° | ±5 |
Axial travel | 5 |
Weight/g | 173 |

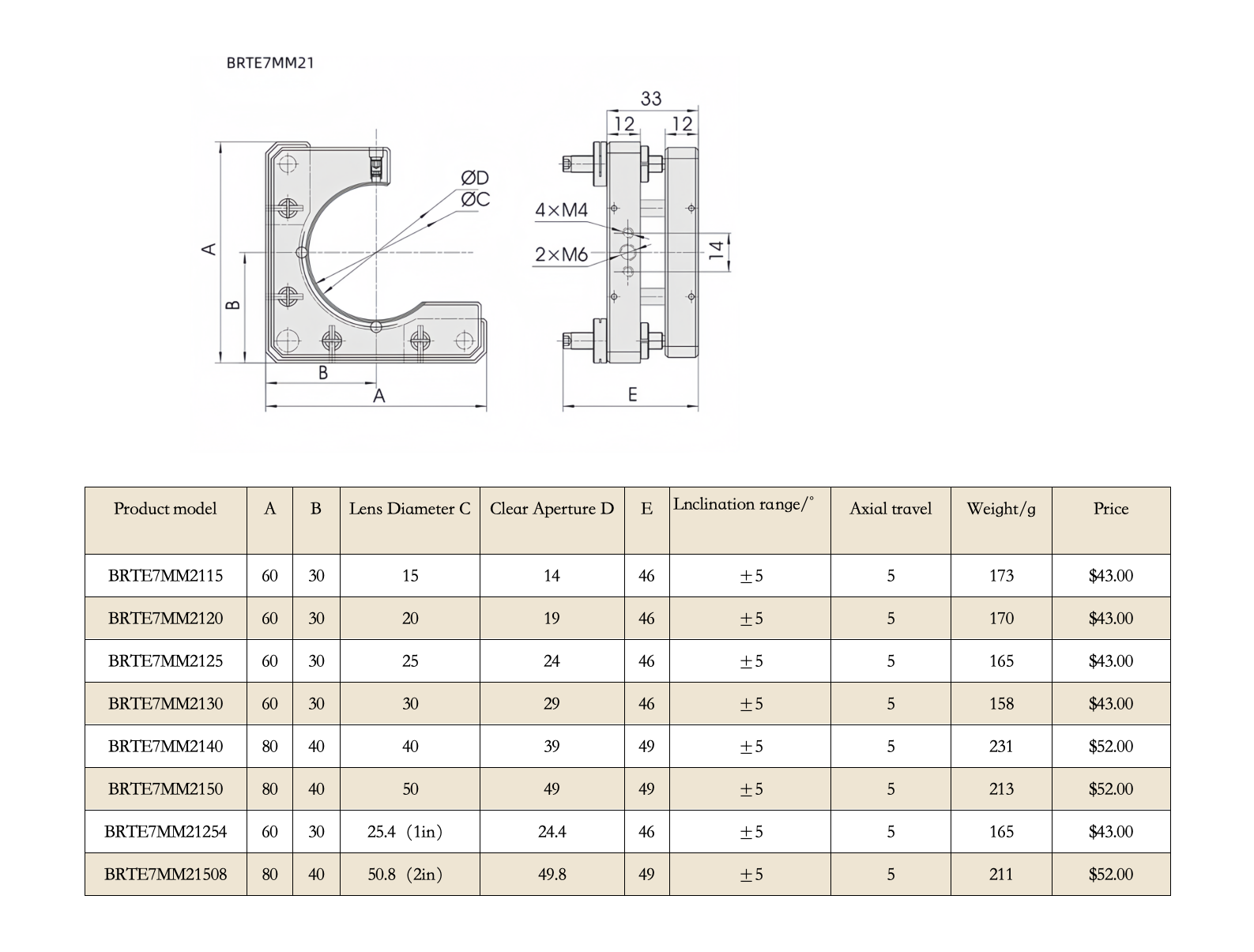

PRODUCT DRAWING AND THE SAME SERIES：
