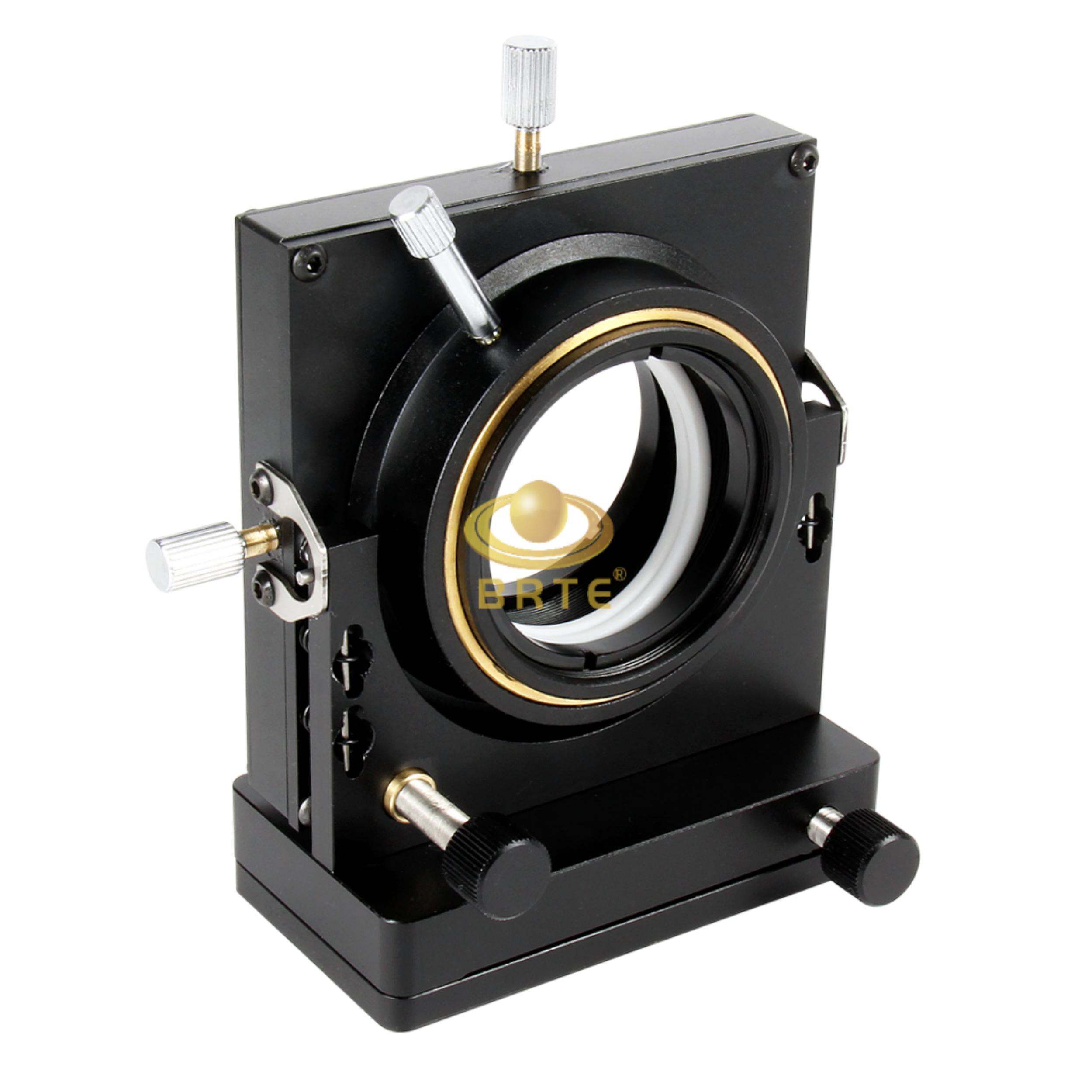

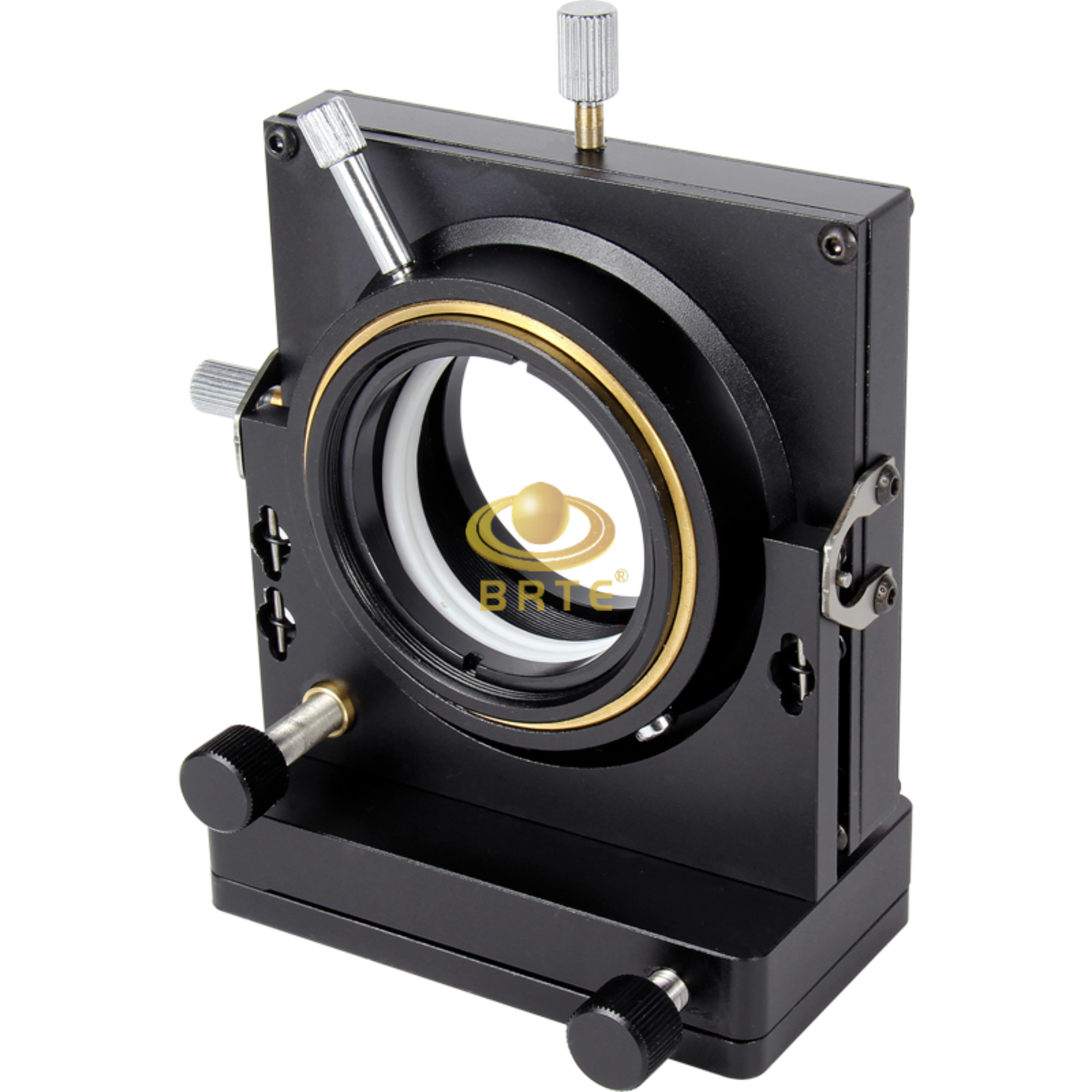

BRTE7MM1050 Five-axis Adjustable Mirror Mount
QR code
Detail
PRODUCT CHARACTERISTICS：
Three-dimensional translation and two-dimensional rotation
The lens can be adjusted orthogonal coplanarity in two-dimensions to ensure the optical distance not changed
fine thread for adjustment, high resolution
M52 X1 standard thread hole, mounting for 50.8mm or 50mm diameter lens, or other products
PRODUCT SPECIFICATIONS：
Product Name | Five-axis Adjustable Mirror Mount |
Product Model | BRTE7MM1050 |
Adjustment range of the optical axis/mm | 6 |
Adjustment range of vertical and horizontal/mm | ±2.5 |
Rotation angle around a horizontal axis/° | ±2 |
Rotation angle around a vertical axis/° | ±4 |
Weight/g | 703 |

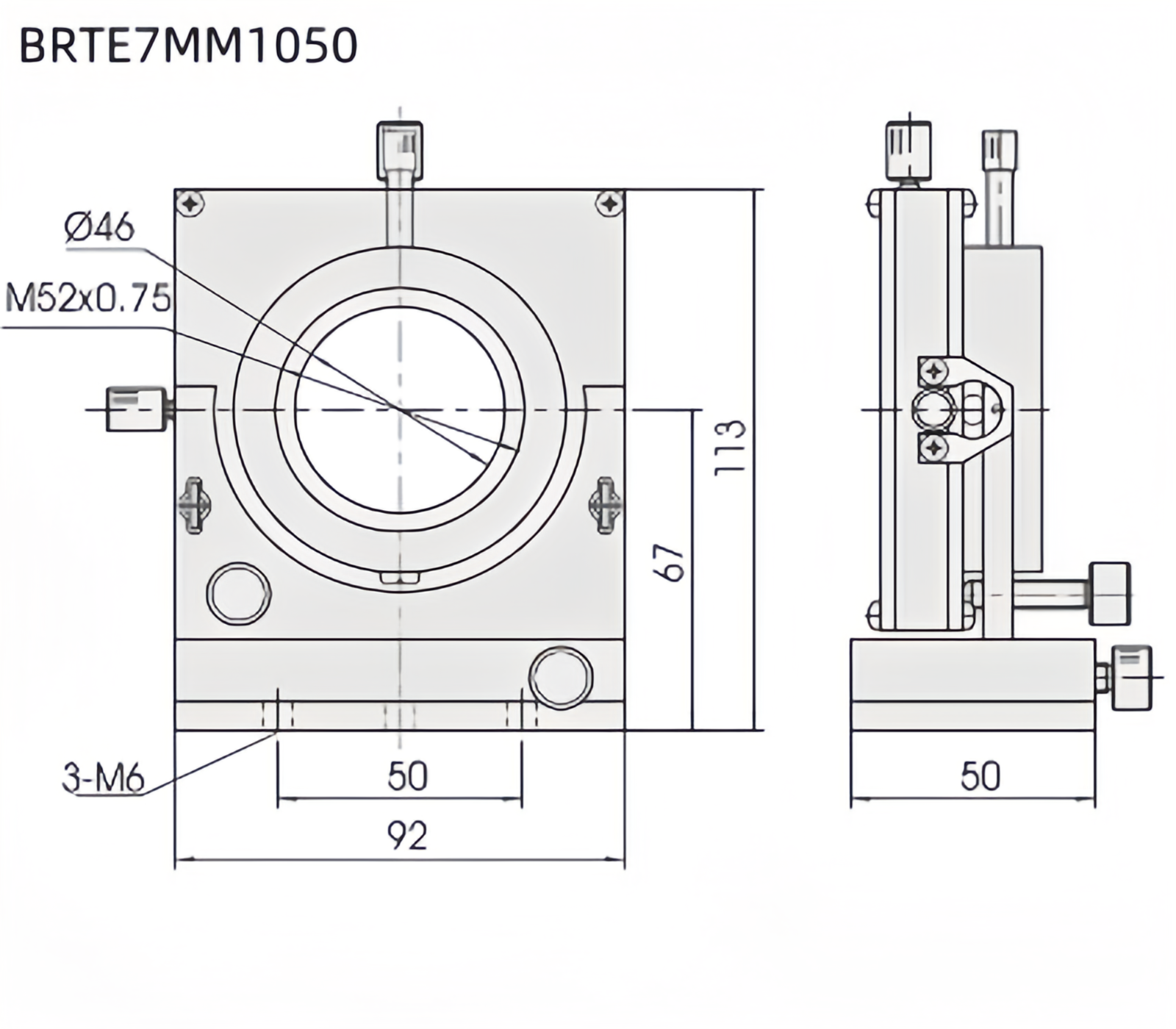

PRODUCT DRAWING AND THE SAME SERIES：
