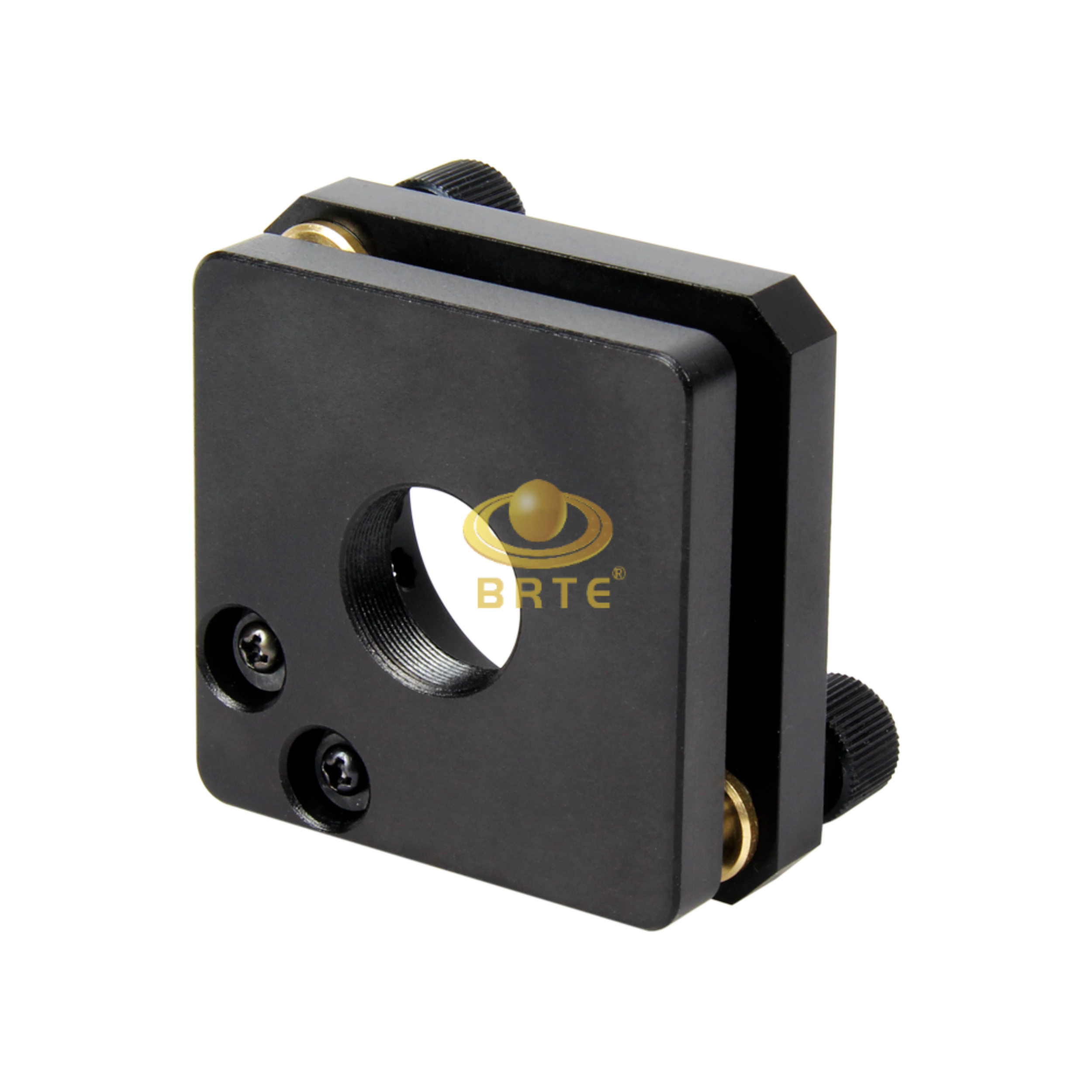

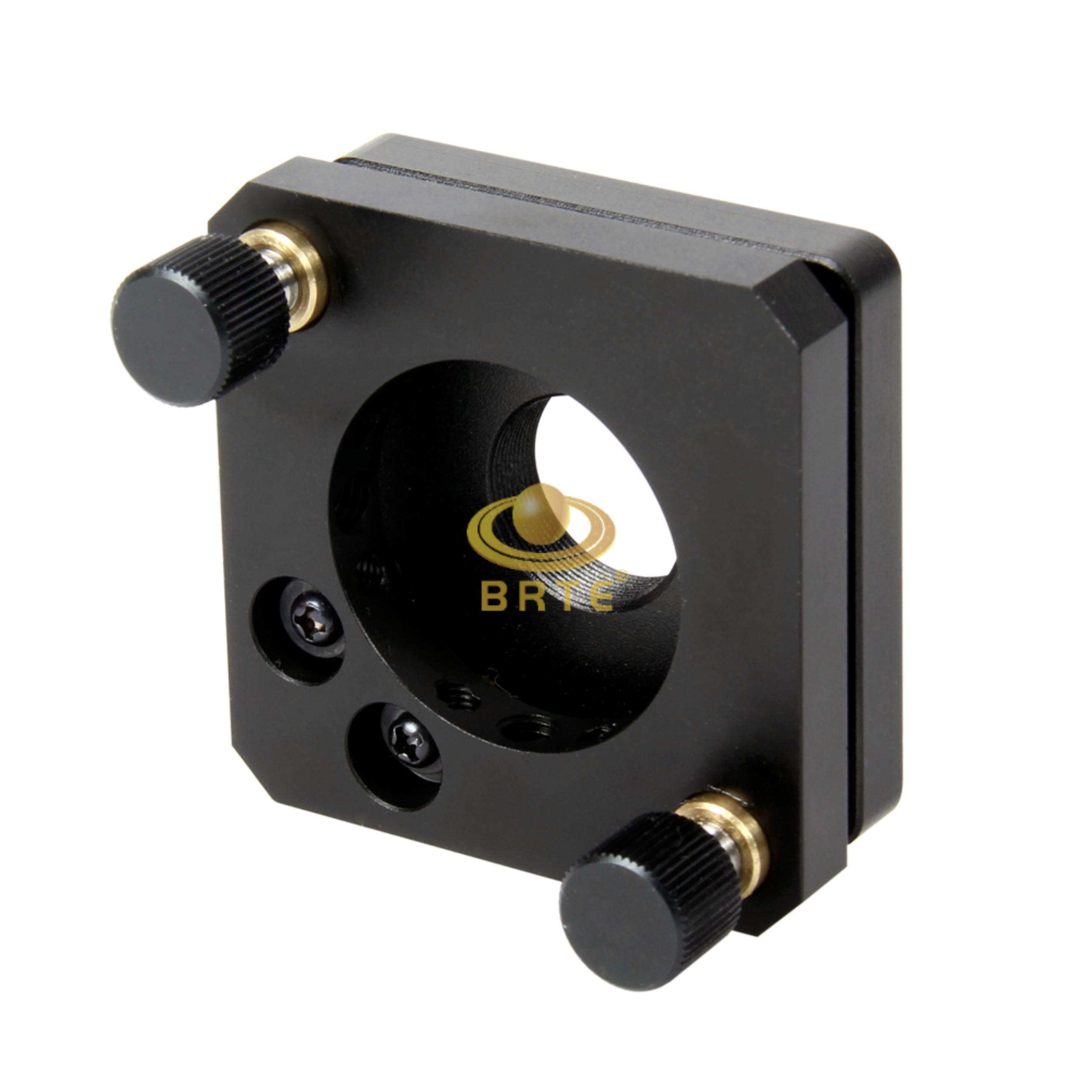

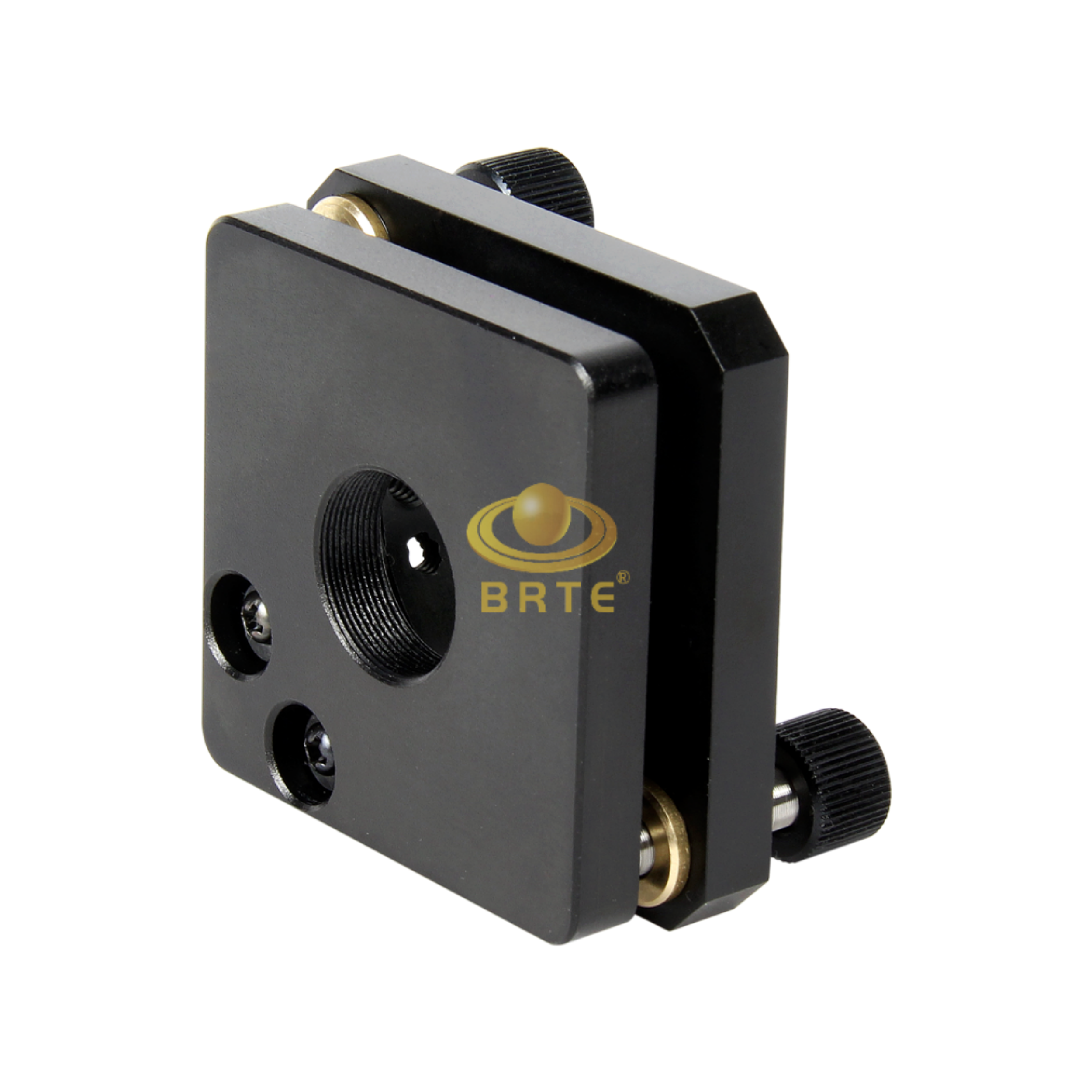

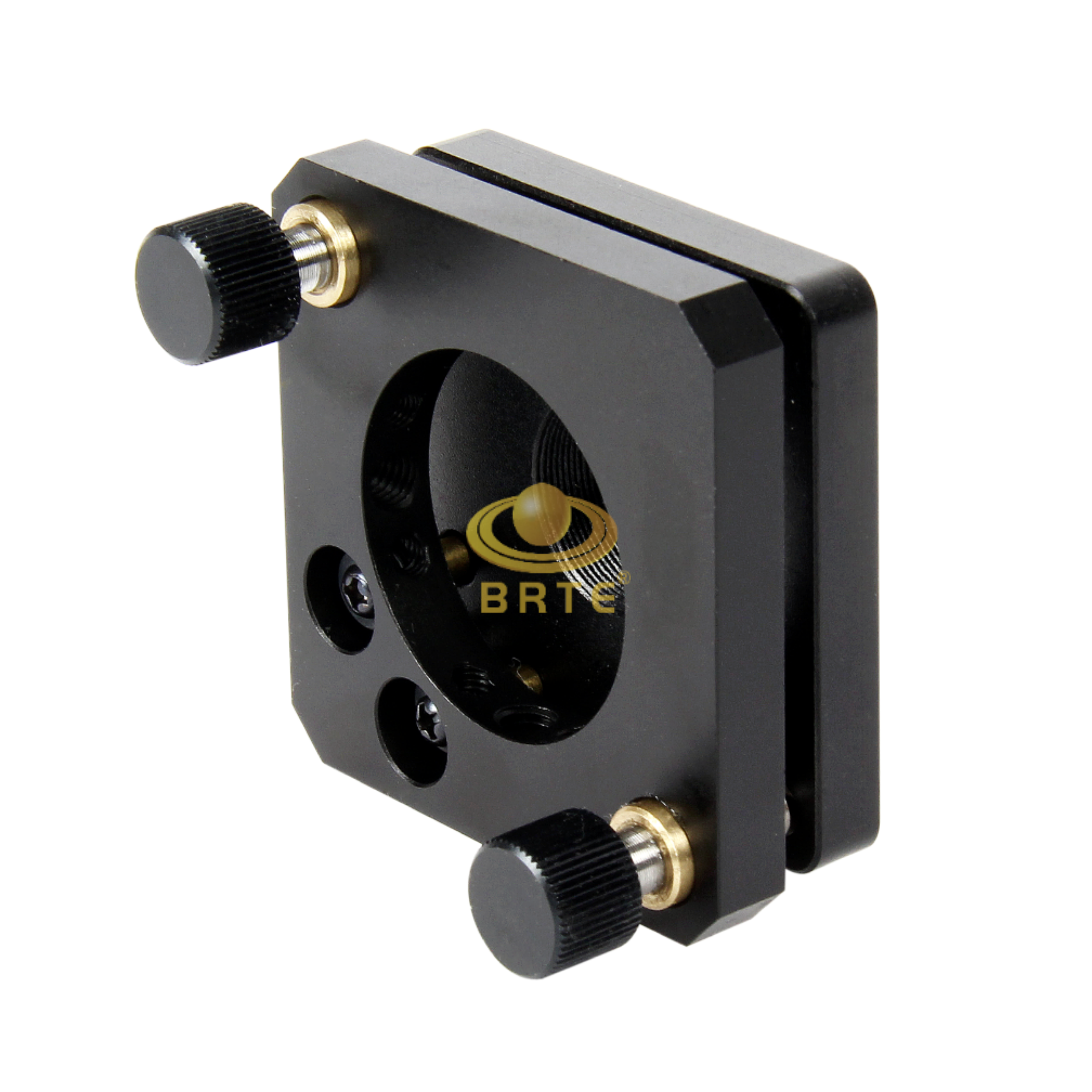

BRTE7MMO1 Two-axis Adjustable Objective Lens Mirror Mount
QR code
Detail
PRODUCT CHARACTERISTICS：
Standard thread hole WJ4/5 “-1/36” for microobjective
M6×0.25 fine thread for adjustment (with copper nut)
Belleville spring for reset, reset force can be adjusted, from zero to rigidity
PRODUCT SPECIFICATIONS：
Product Name | Two-axis Adjustable Mirror Mount |
Product Model | BRTE7MMO1 |
Weight/g | 144 |

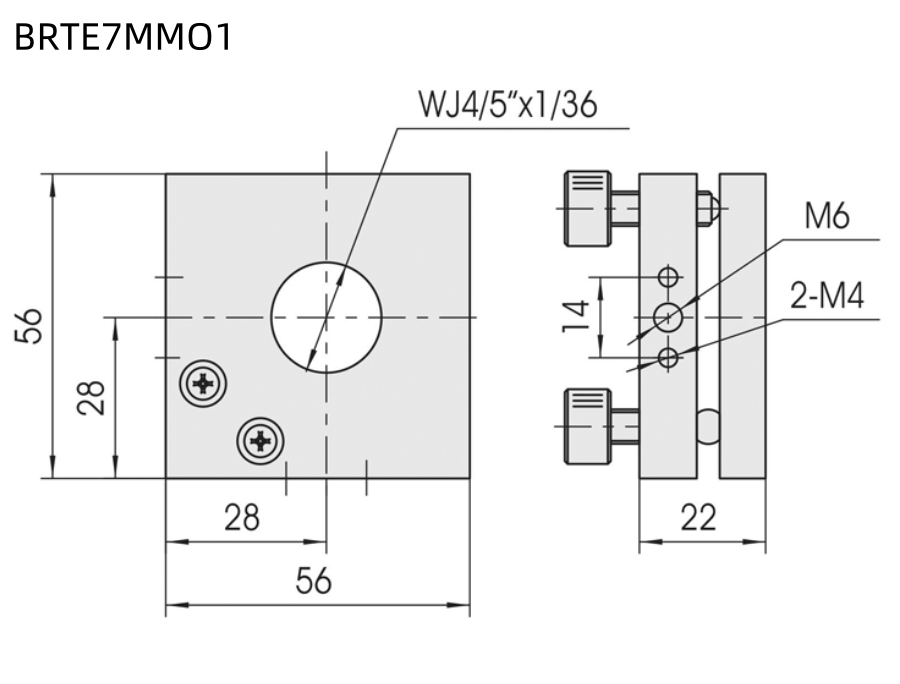

PRODUCT DRAWING AND THE SAME SERIES：
