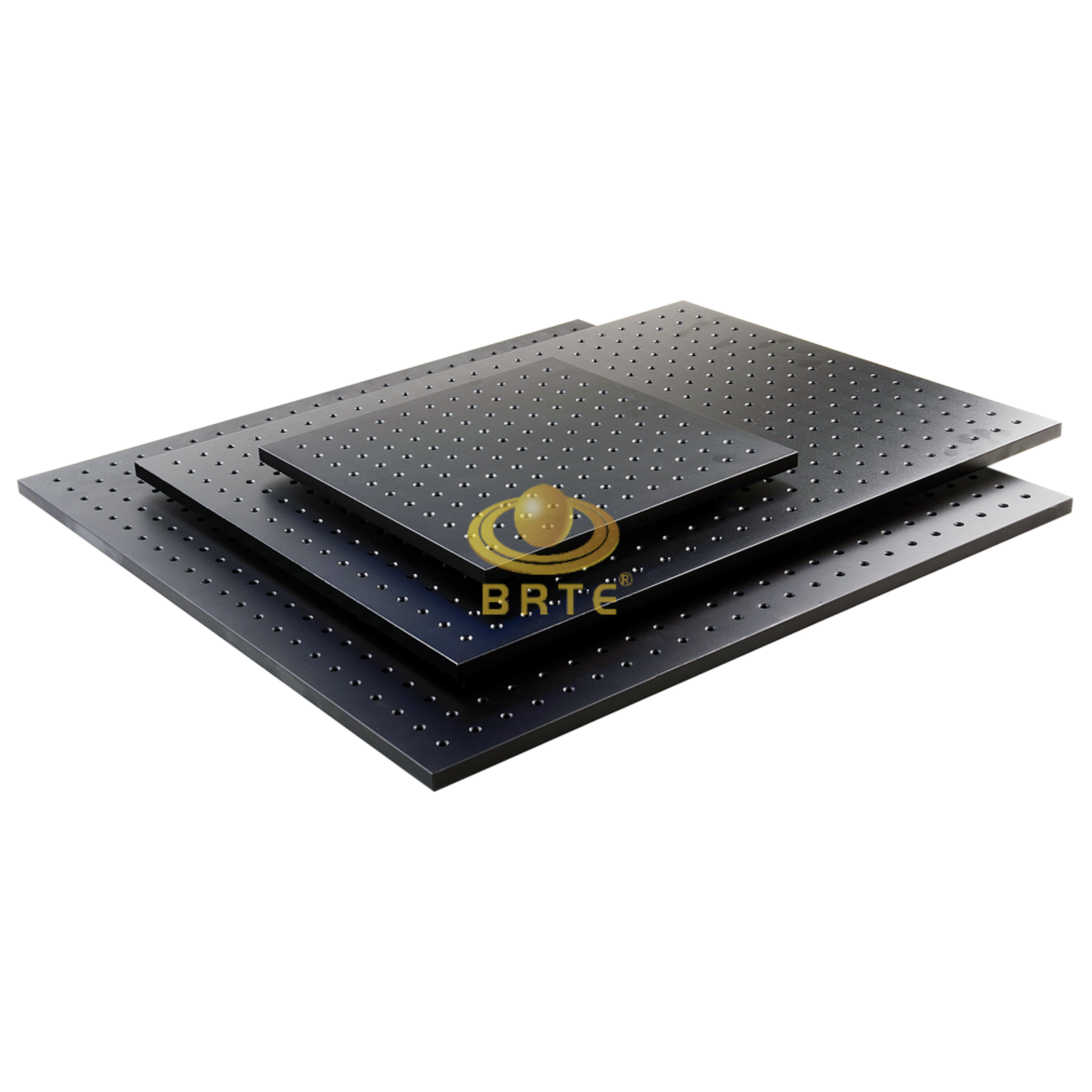

BRTE Aluminum Breadboard
QR code
Detail
PRODUCT CHARACTERISTICS：
Using high-quality aluminum alloy, high flatness, low weight, easy tomove
Special surface treatment, good appearance and wearable

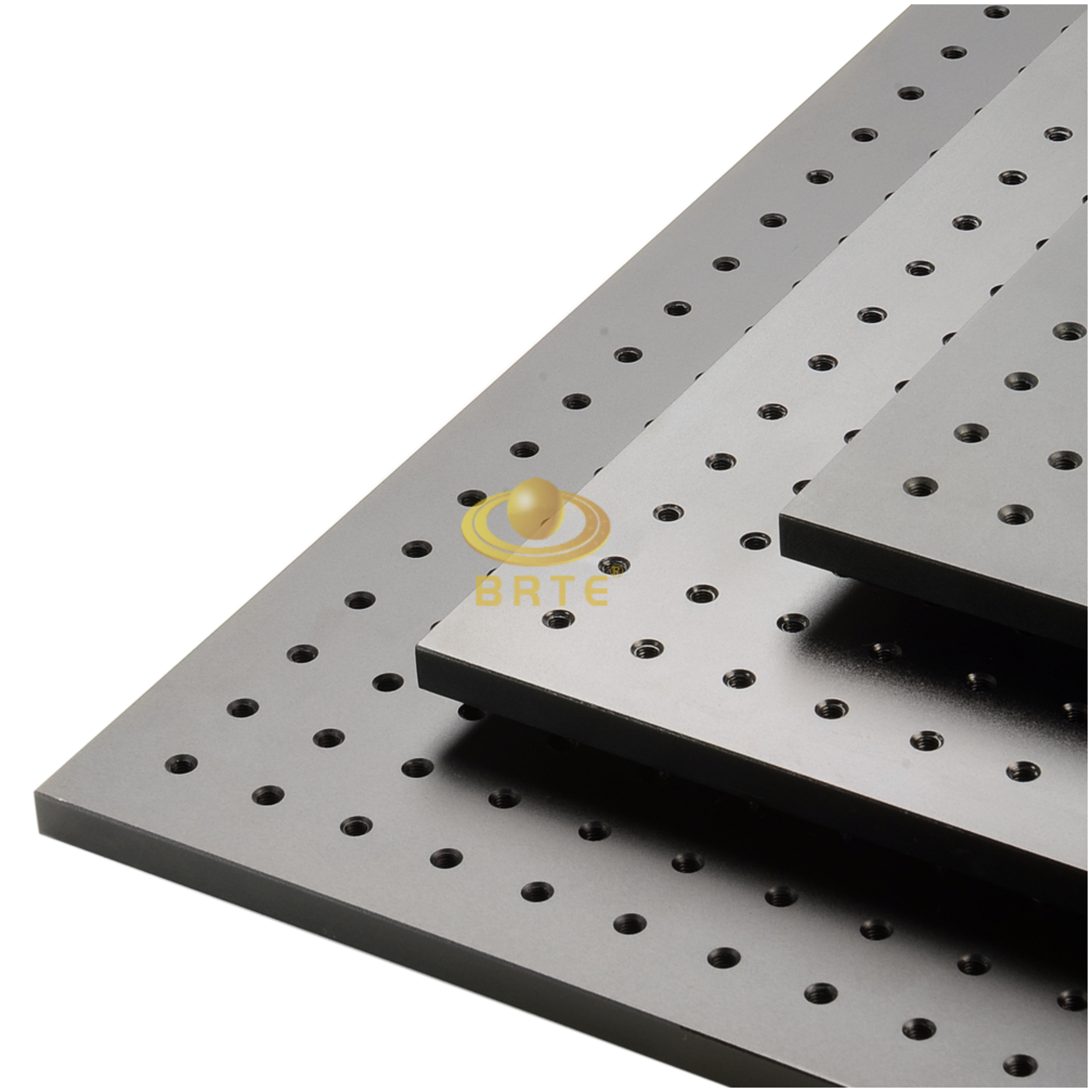

M6 threaded holes array with distance 25mm in the surface for fixingdevice conveniently
PRODUCT SPECIFICATIONS：
Product Name | Optical Breadboard |
Product Model | BRTE7TP133 |
Thickness (mm) | 13 |
Flatness | 0.3mm(600mm x600mm) |
Diameter between holes | 25mm |
Diameter of holes | M6 |
Size of table(mm) | 300 x 300 |
Weight | 3.2kg |

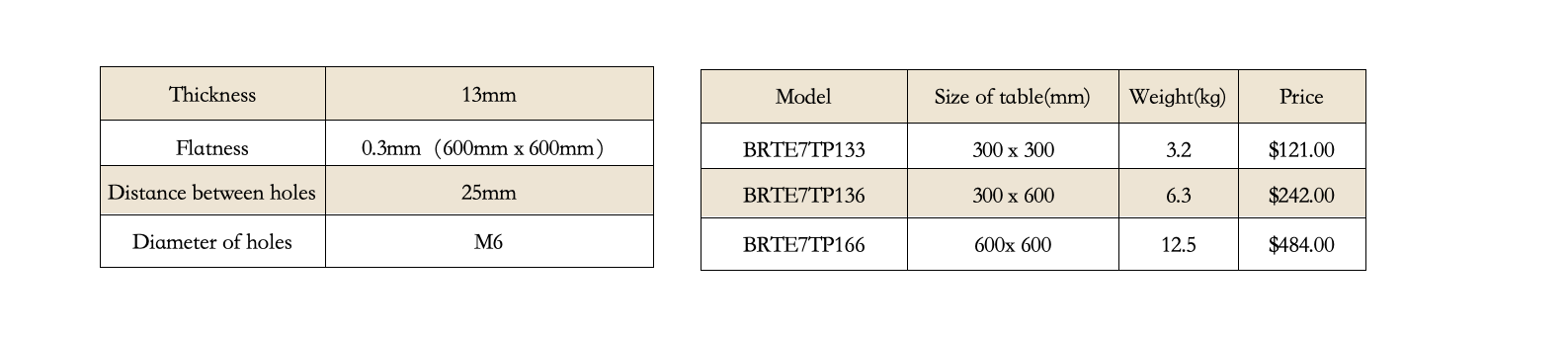

PRODUCT DRAWING AND THE SAME SERIES：
