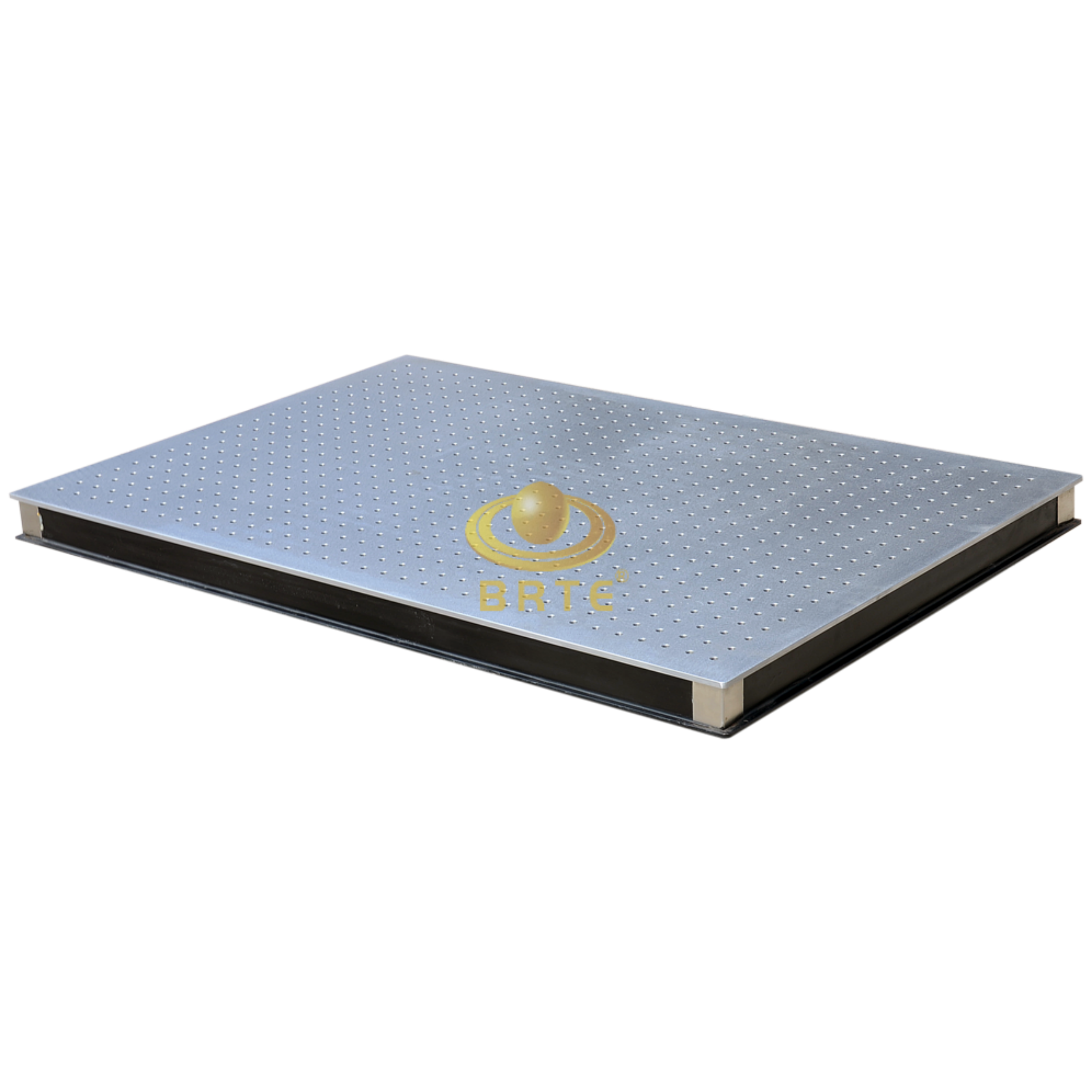

BRTE Stainless Steel Breadboard
QR code
Detail
PRODUCT CHARACTERISTICS：
Ferromagnetic stainless steel table, special processing ensures high flatness without dazzling
Magnetic, devices can be fixed on arbitrary position used together with the BRTE7MBM series of magnetic bases
M6 threaded holes array with distance 25mm in the surface for fixing device conveniently
Three-layers structure, honeycomb support in the core, increasing rigidity,reducing weight and good anti-vibration
PRODUCT SPECIFICATIONS：
Product Name | Optical Breadboard |
Product Model | BRTE7TB133 |
Thickness (mm) | 50 |
Flatness | 0.1mm(600mm x600mm) |
Diameter between holes | 25mm |
Diameter of holes | M6 |
Size of table(mm) | 300 x 300 |
Weight | 10kg |

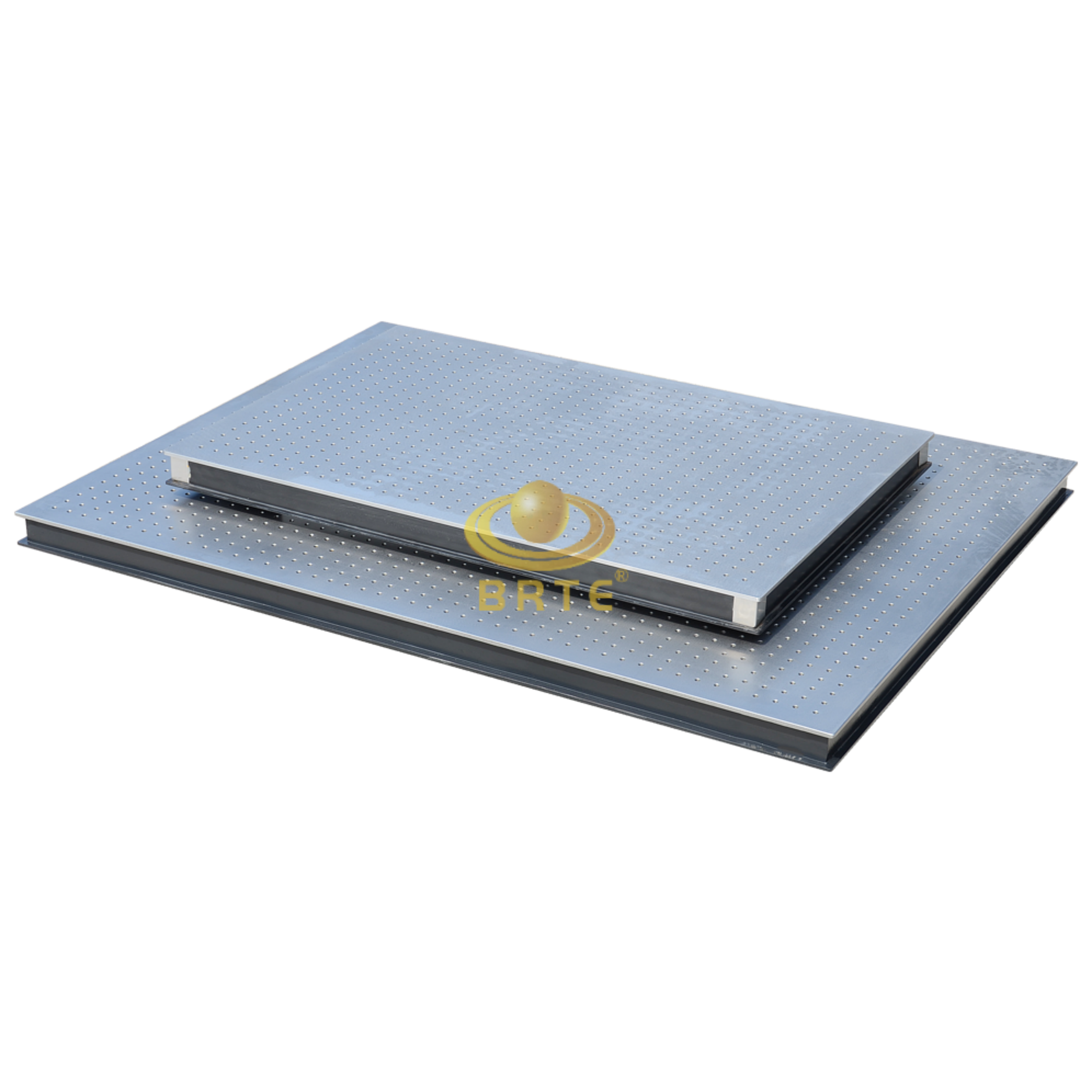

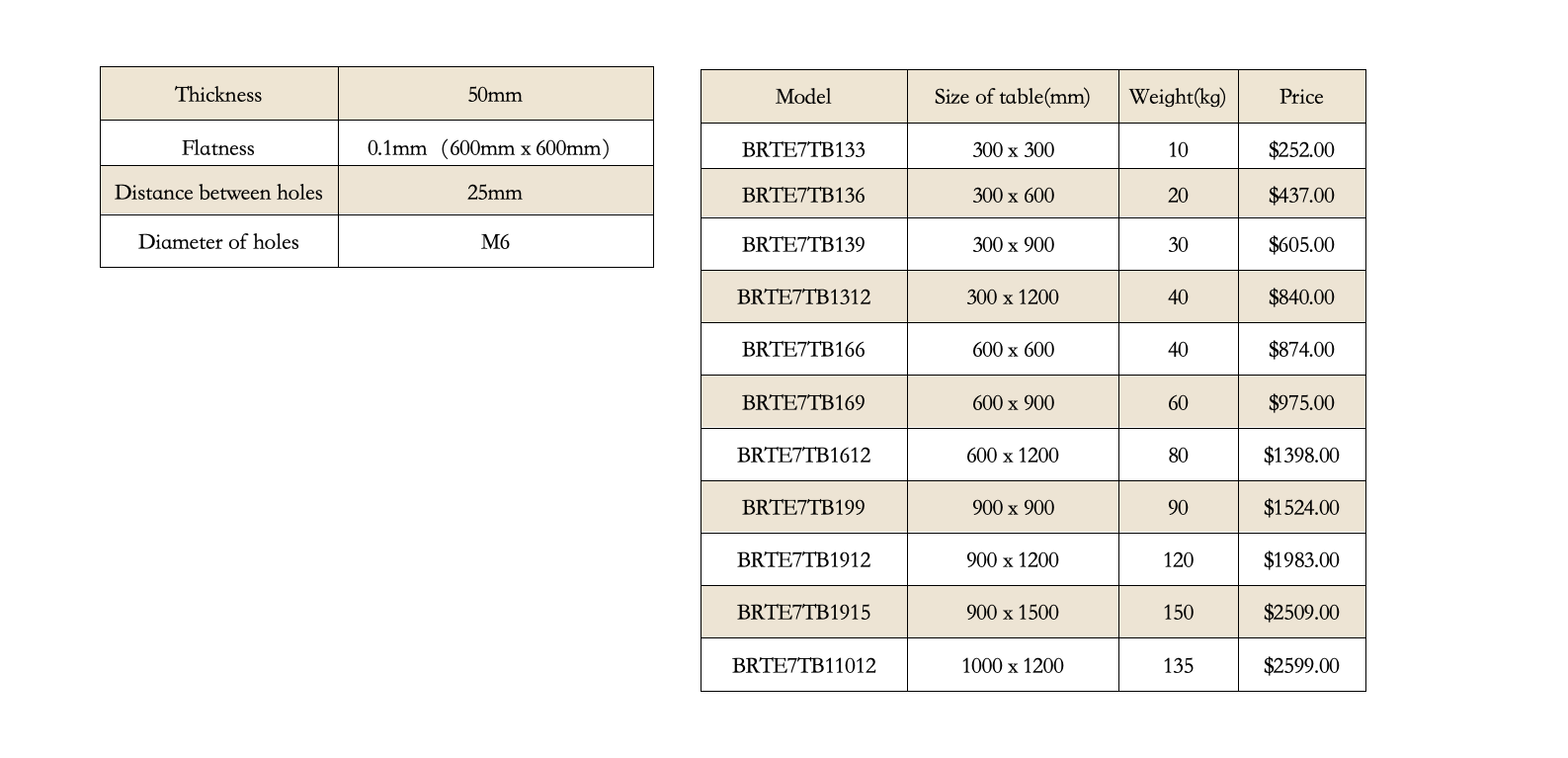

PRODUCT DRAWING AND THE SAME SERIES：
