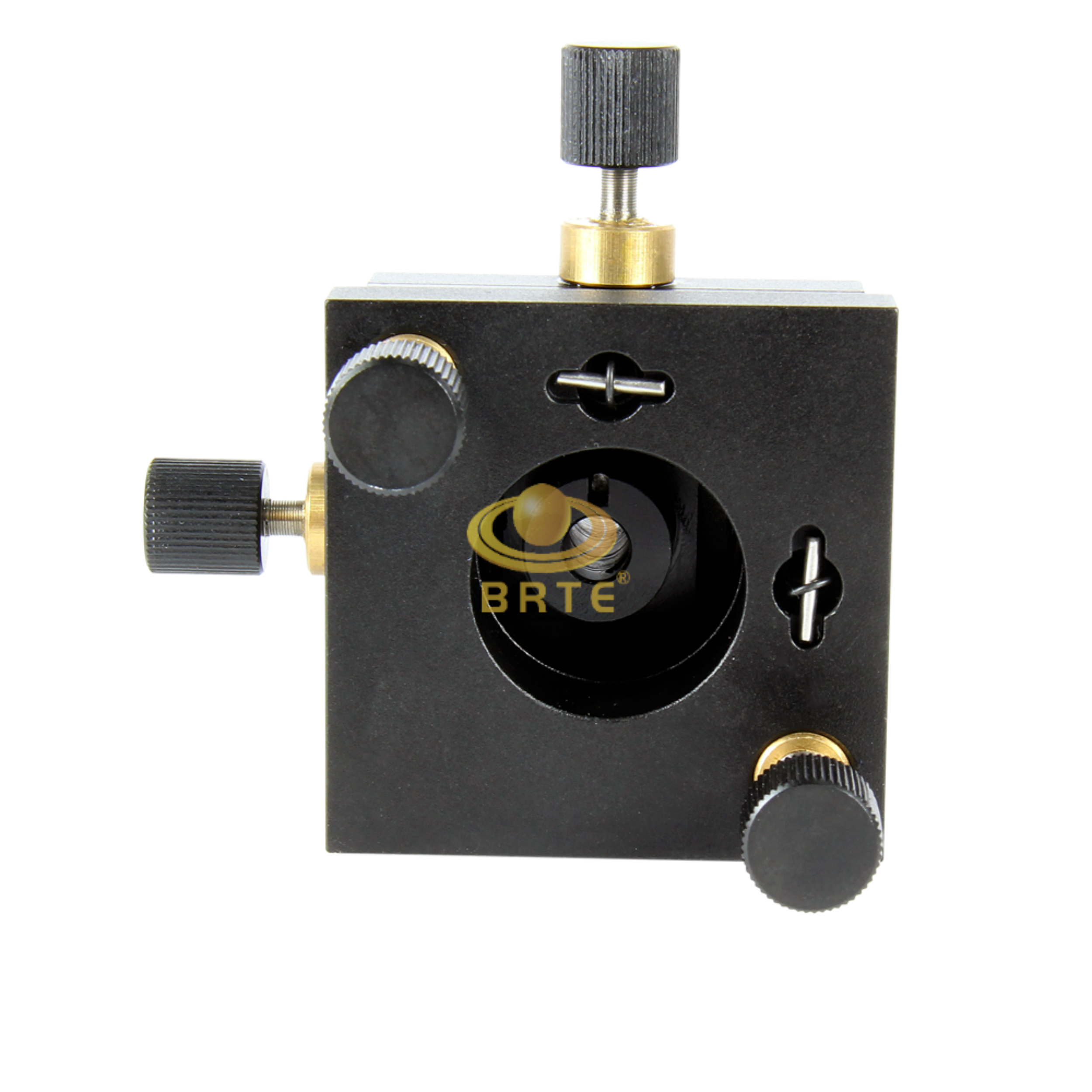

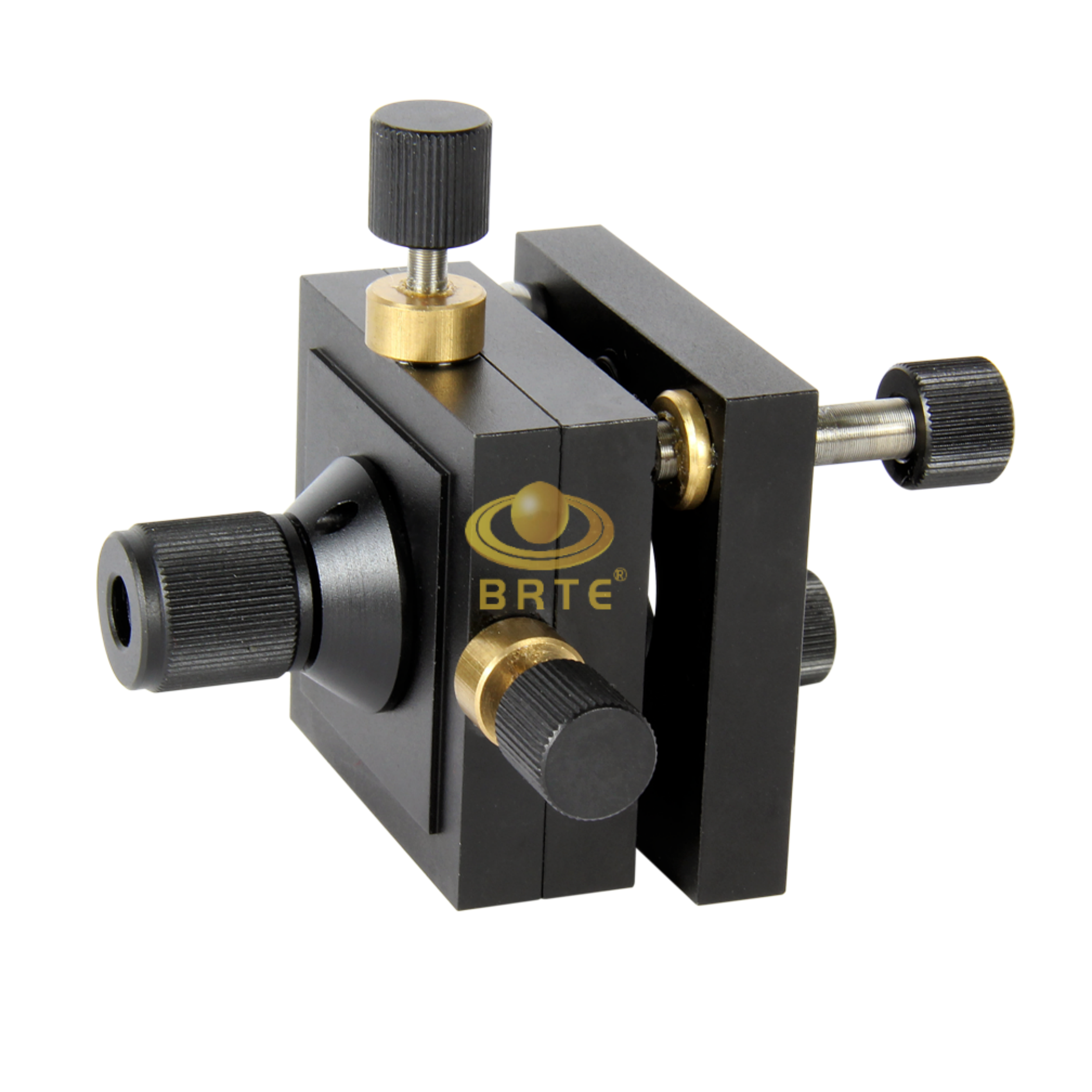

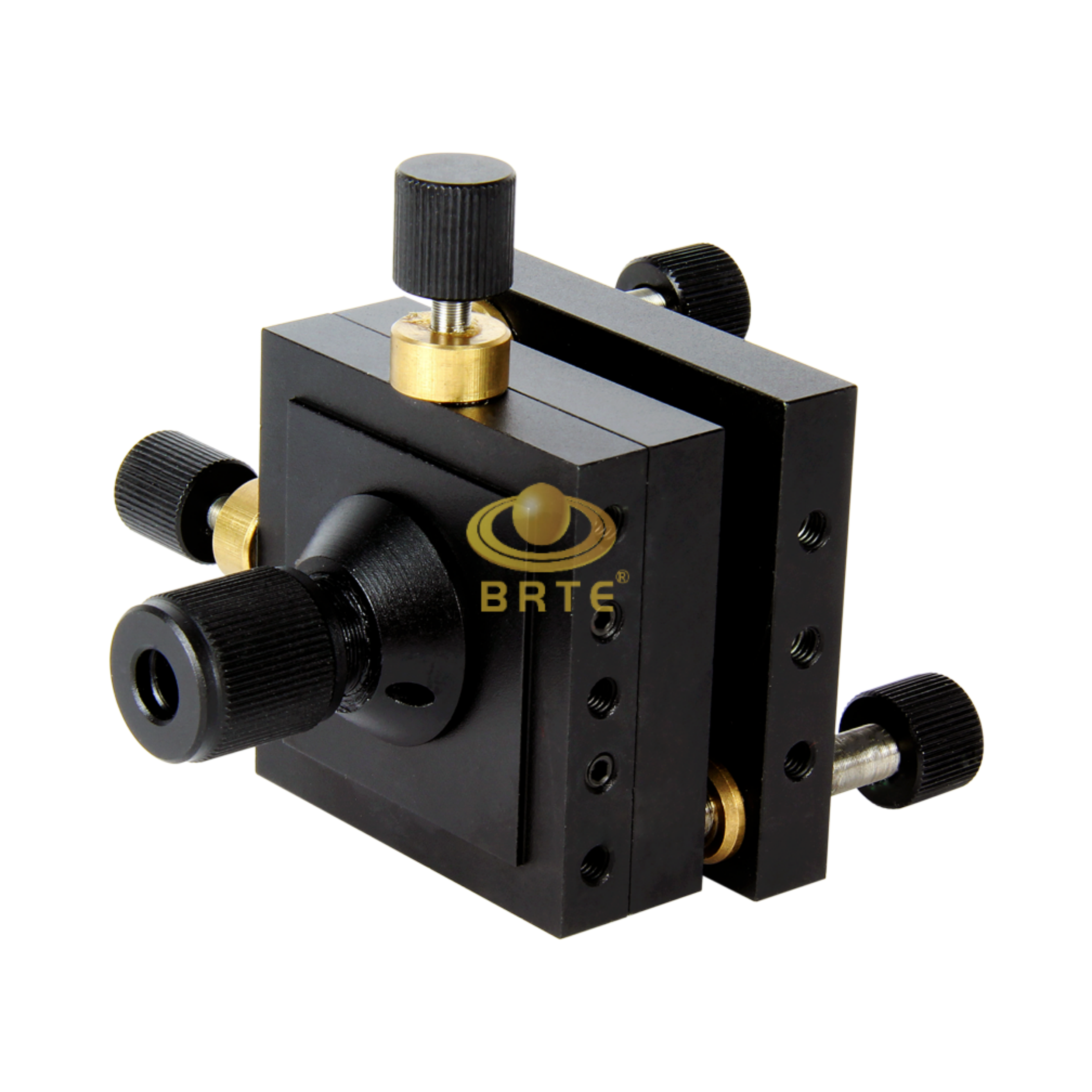

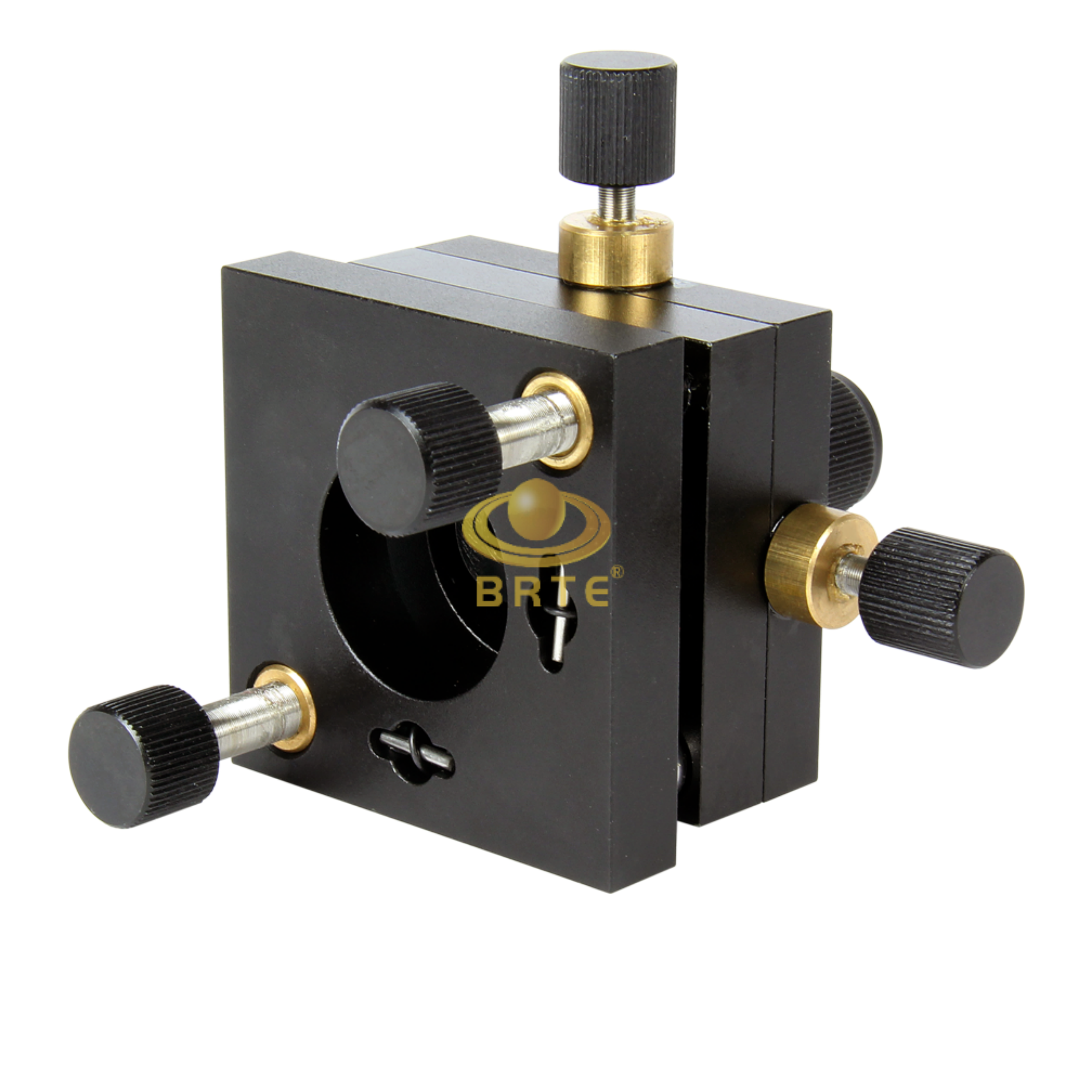

BRTE7MFC1 Fiber Coupler
QR code
Detail
PRODUCT CHARACTERISTICS：
Provide three-dimentional translation and two-dimentional tilt adjustmets
Integrally closed design, compact structure
Adjusted by fine thread, high precision
PRODUCT SPECIFICATIONS：
Product Name | Fiber Coupler |
Product Model | BRTE7MFC1 |
Axial travel Tx | 6 |
Vertically travel at Y direction Ty | ±2 |
Vertically travel at Z direction Tz | ±2 |
Tilt adjustable range around Y axis θy /° | ±4 |
Tilt adjustable range around Z axis θz /° | ±4 |
Weight/g | 246 |

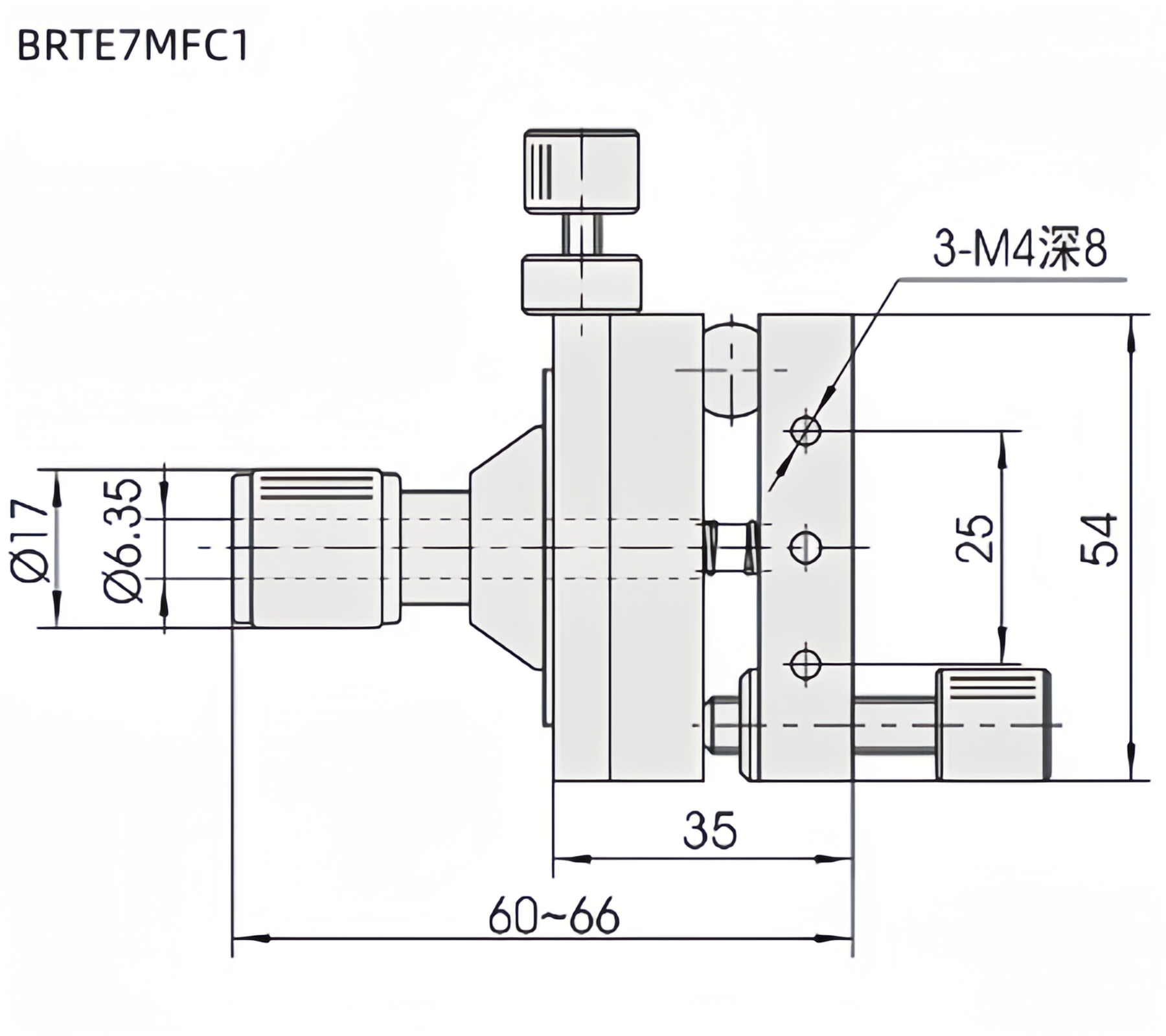

PRODUCT DRAWING AND THE SAME SERIES：
