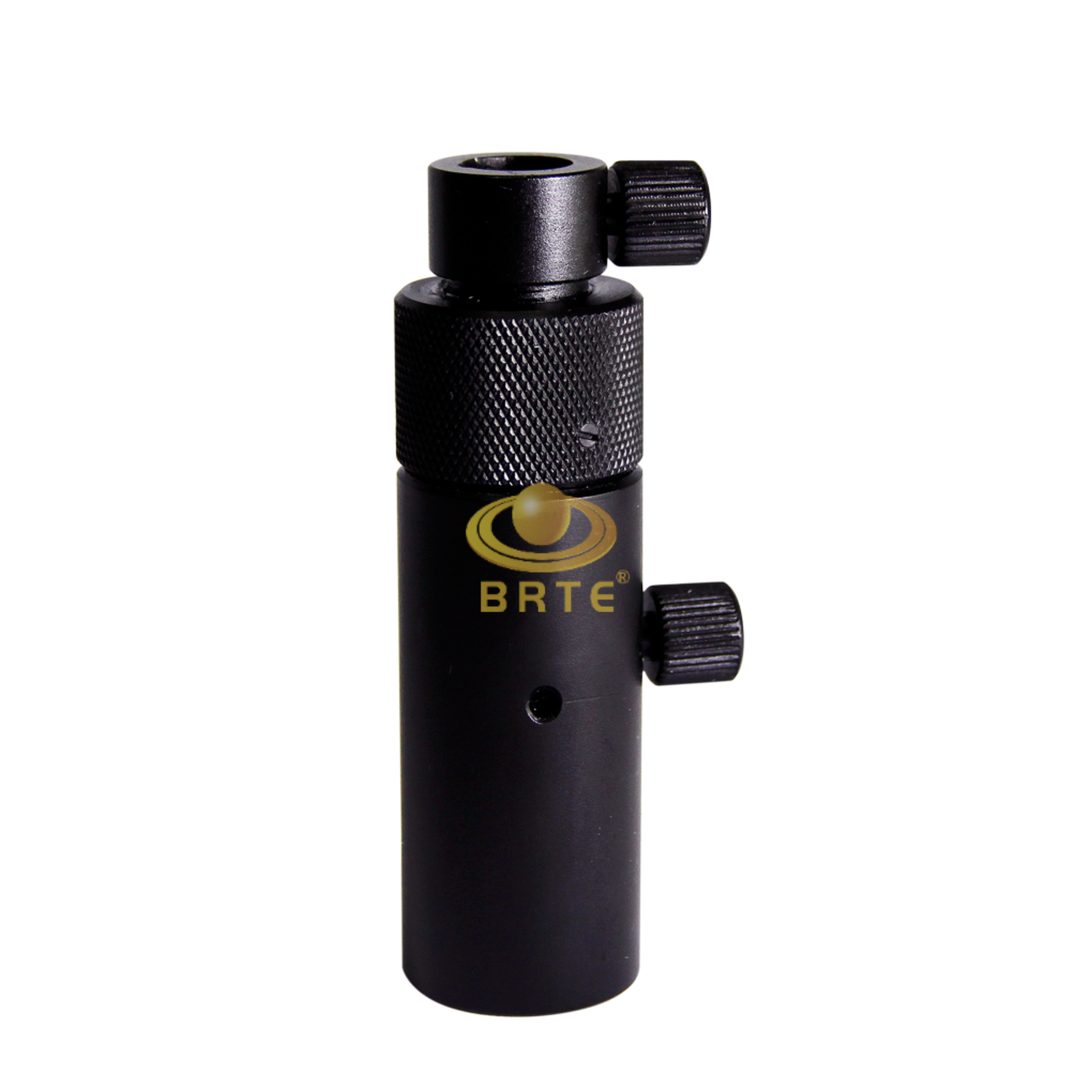

BRTE7MHV115 Lifting Post Holders
QR code
Detail
PRODUCT CHARACTERISTICS：
Make support post rotate in 360° without changing other position parameters
Using precision bearing for rotating, comfortably with high precision
For fixing BRTE7MP1~BRTE7MP4 series support posts at different height
V-shape slot by the center hole makes no positioning change during adjustingand stable clamping
Both the support post and the rotating part can be stably clamped
M6 screw hole on bottom is convenience for connecting with other opto-mechanics
PRODUCT SPECIFICATIONS：
Product Name | Lifting Post Holders |
Product Model | BRTE7MHV115 |
Height range L | 72~87 |
Adjustment rang | 15 |
Diameter of center hole | 12 |
Weight/g | 96 |

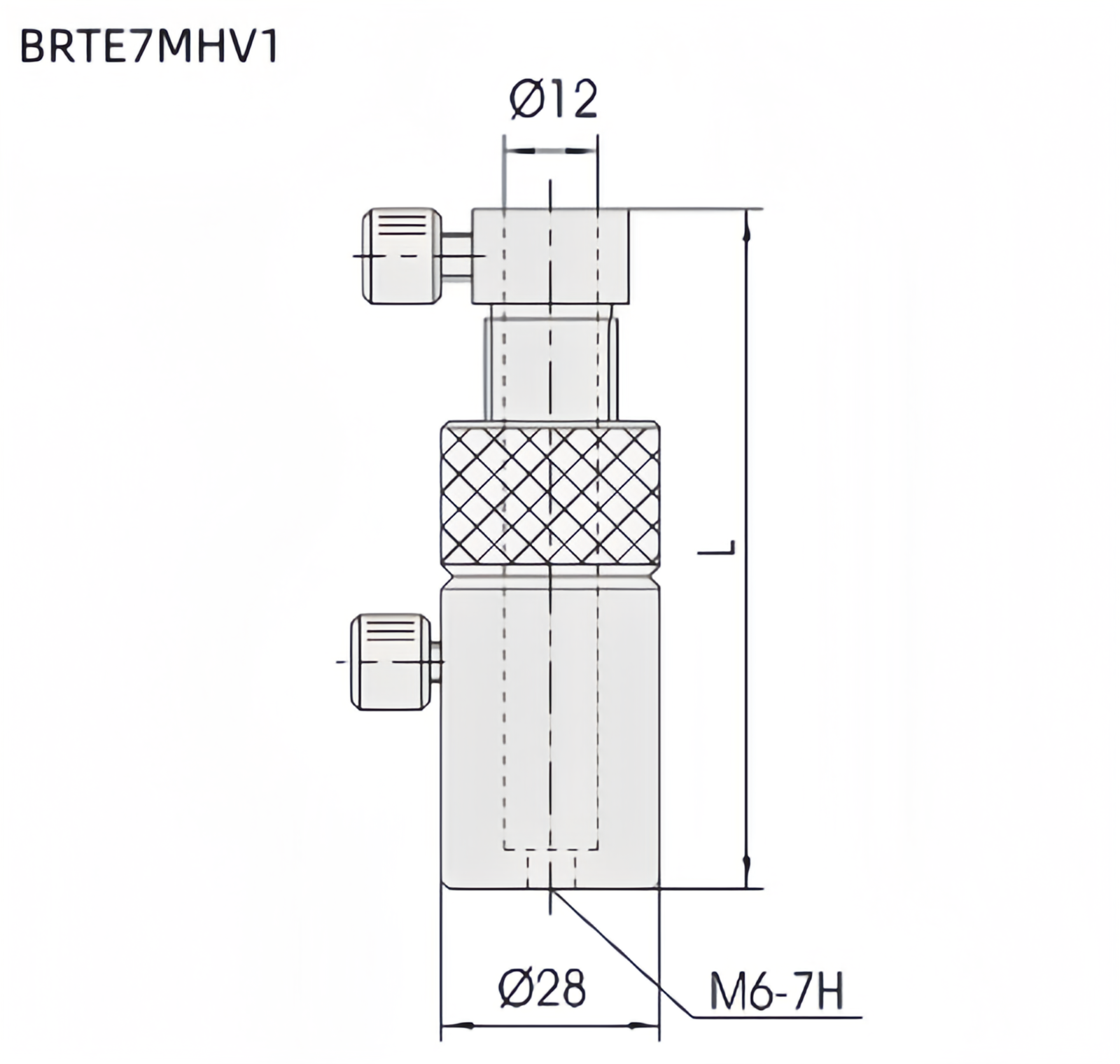

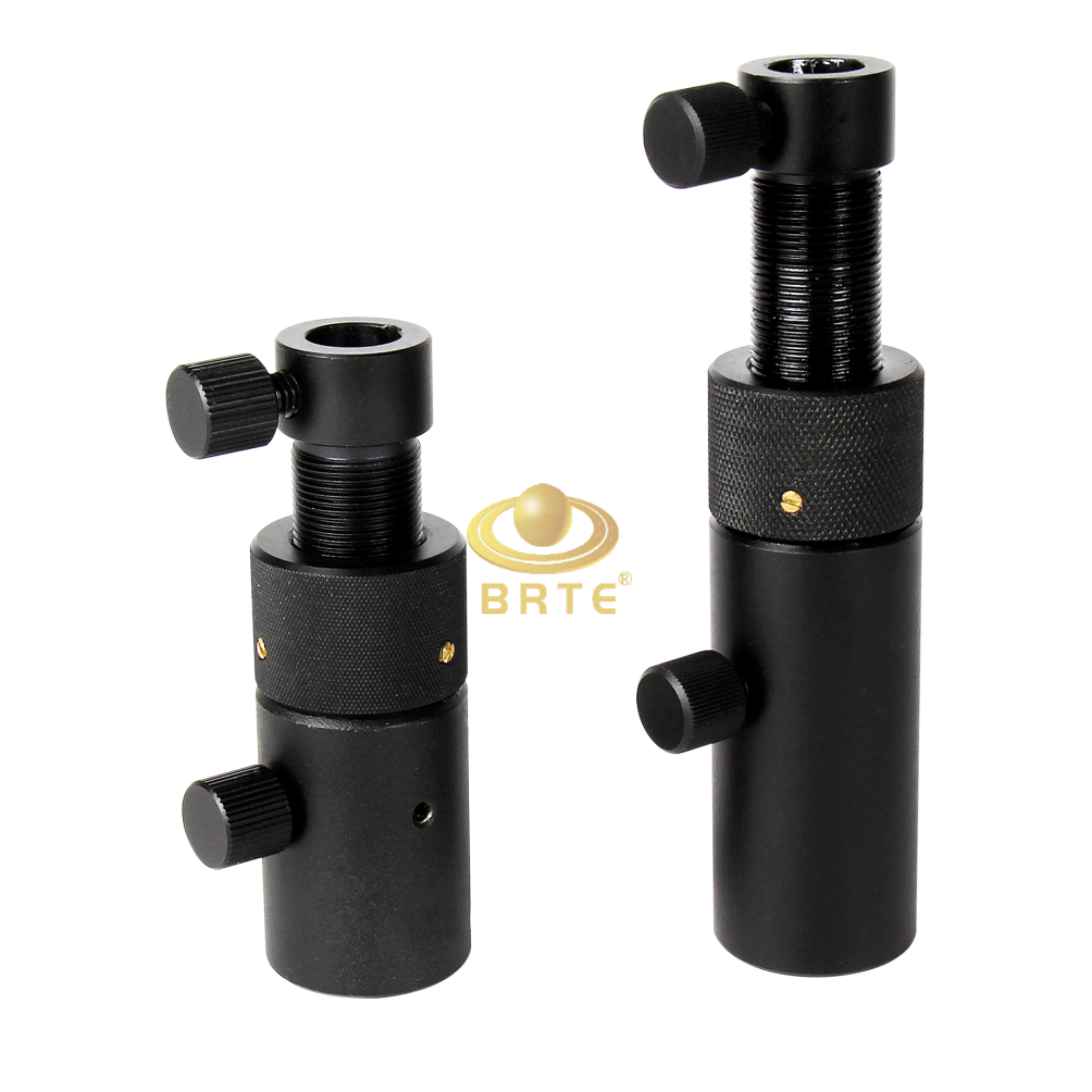

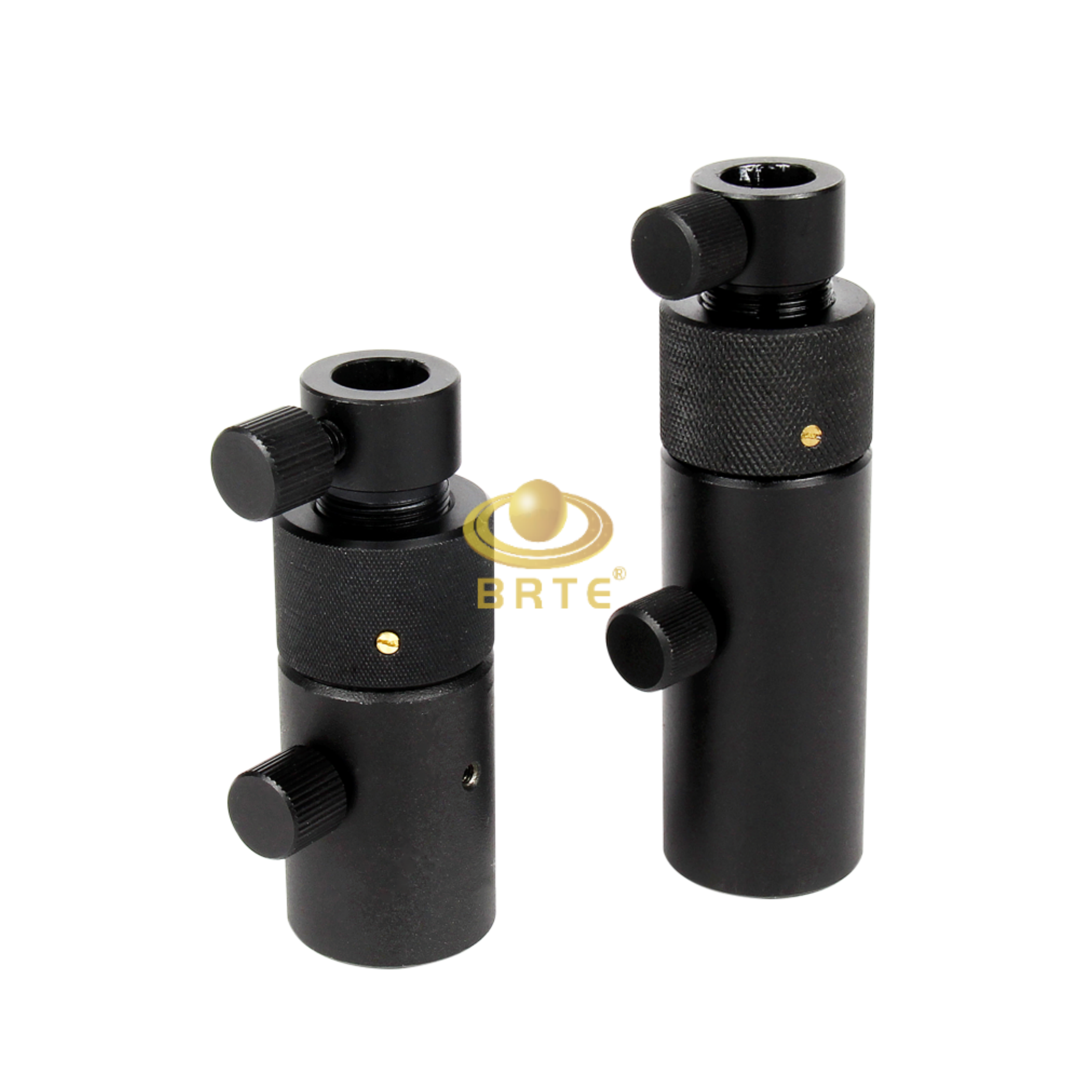

PRODUCT DRAWING AND THE SAME SERIES：
