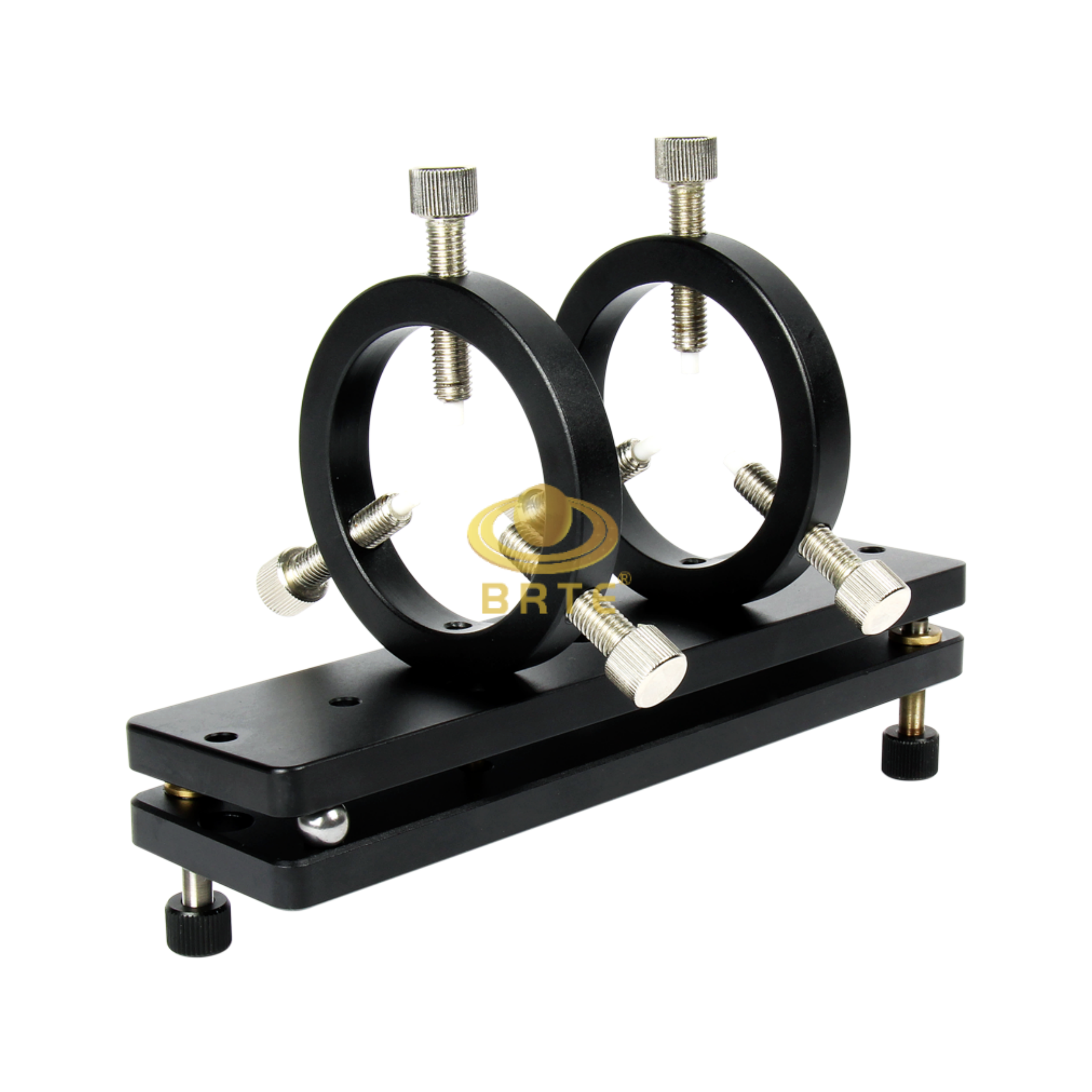

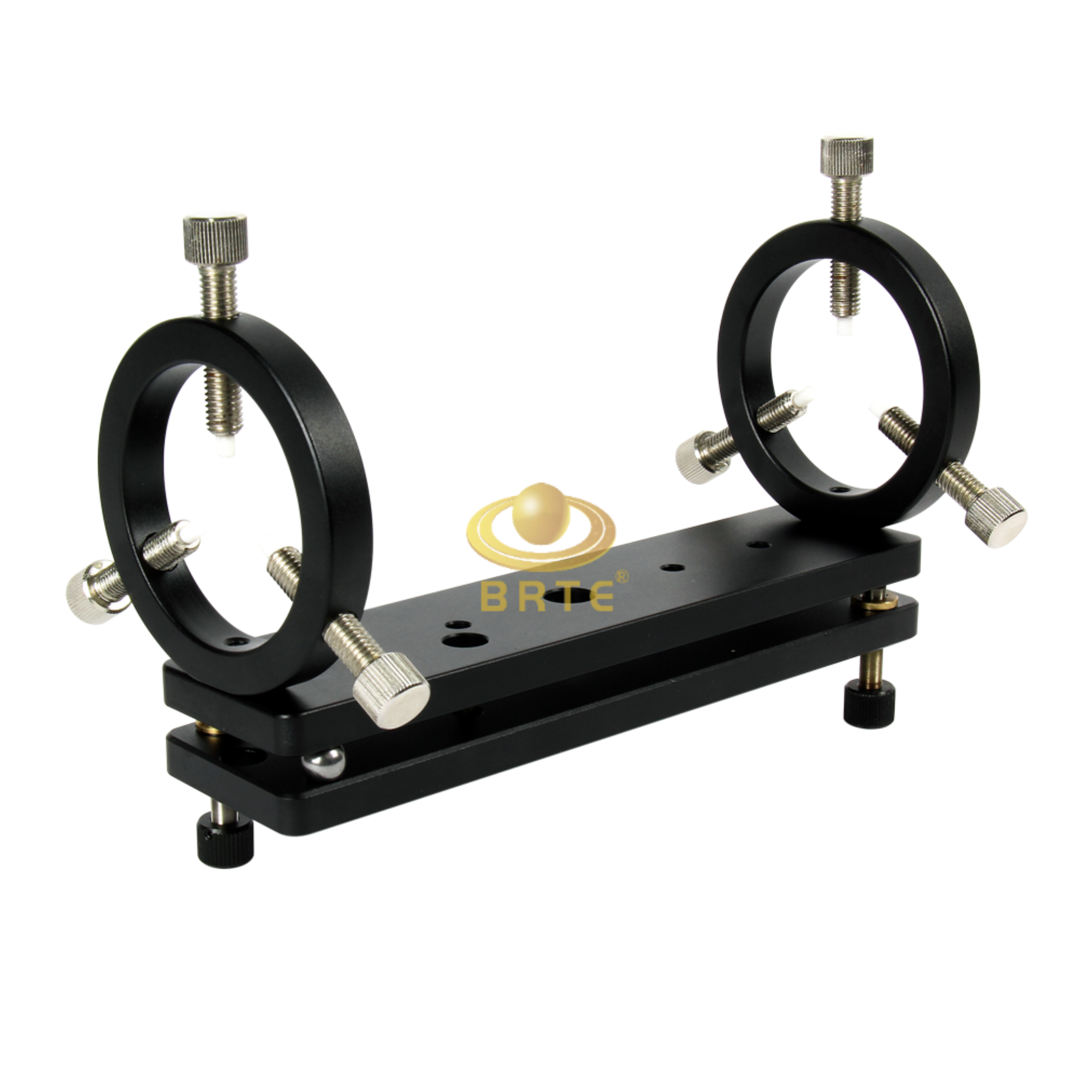

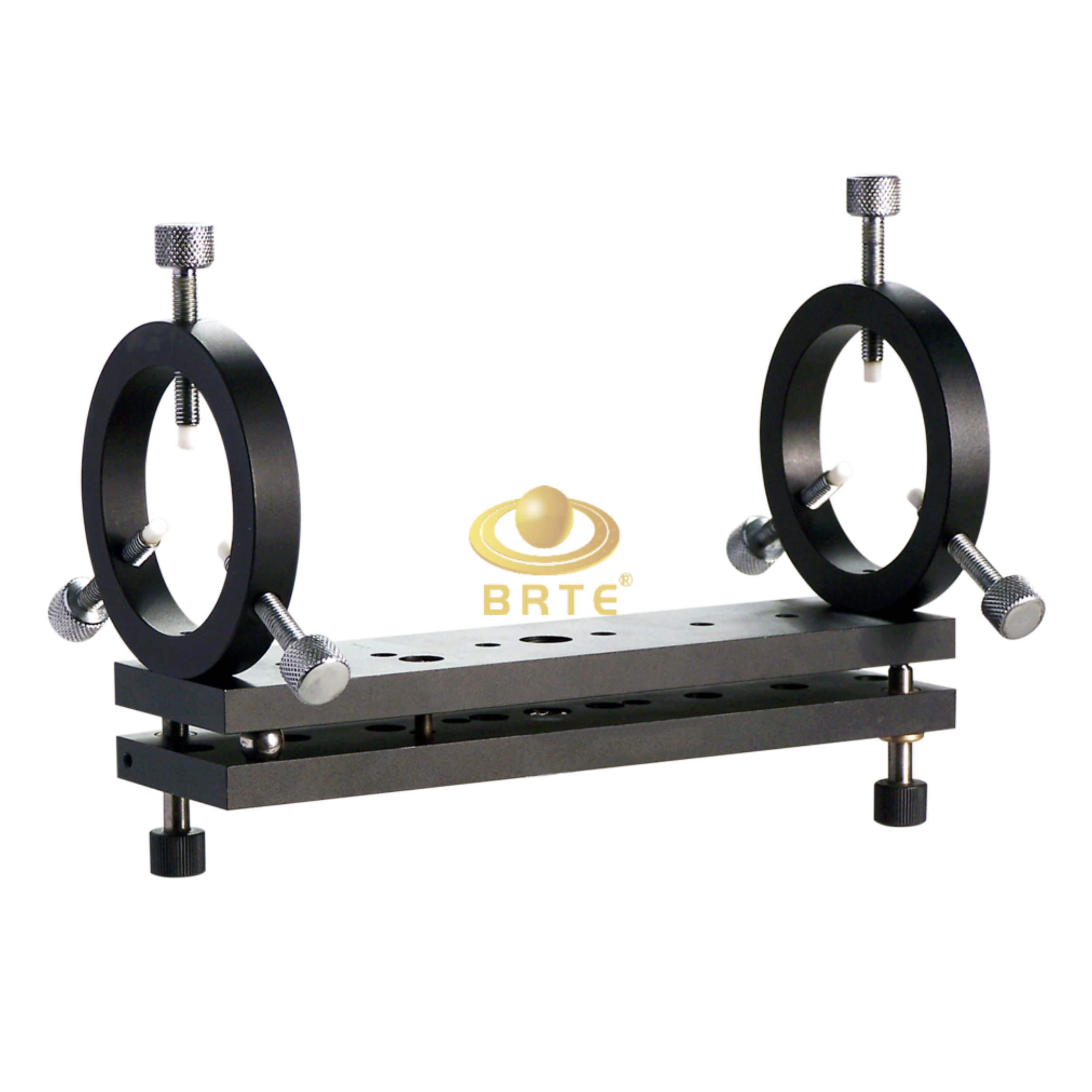

BRTE7MMA1 Laser Mount
QR code
Detail
PRODUCT CHARACTERISTICS：
For rotating and pitching laser diode
Three-claw on both the front and the end, stable fixing
For clamping different diameters of the laser diode orcylinder, and the center can be adjusted
The mutual distance between the two three-claw isadjustable, and suitablefor different length of laser diode
M6 X0.25 fine thread for adjustment and bellevillespring for reset
PRODUCT SPECIFICATIONS：
Product Name | Laser Mount |
Product Model | BRTE7MMA1 |
Maximun Clamping diameter | 60 |
Pitching range /° | ±5 |
Weight/g | 845 |

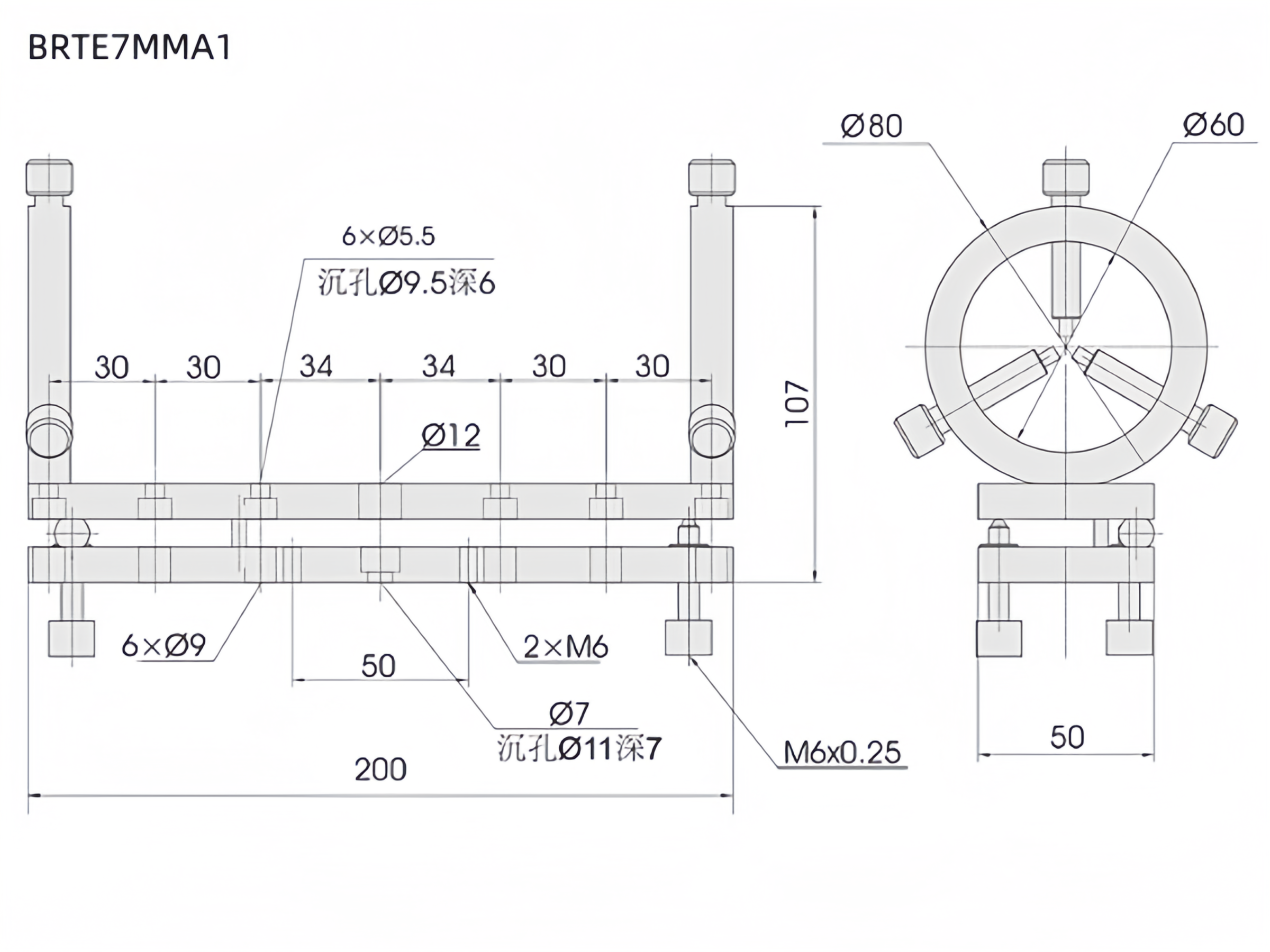

PRODUCT DRAWING AND THE SAME SERIES：
