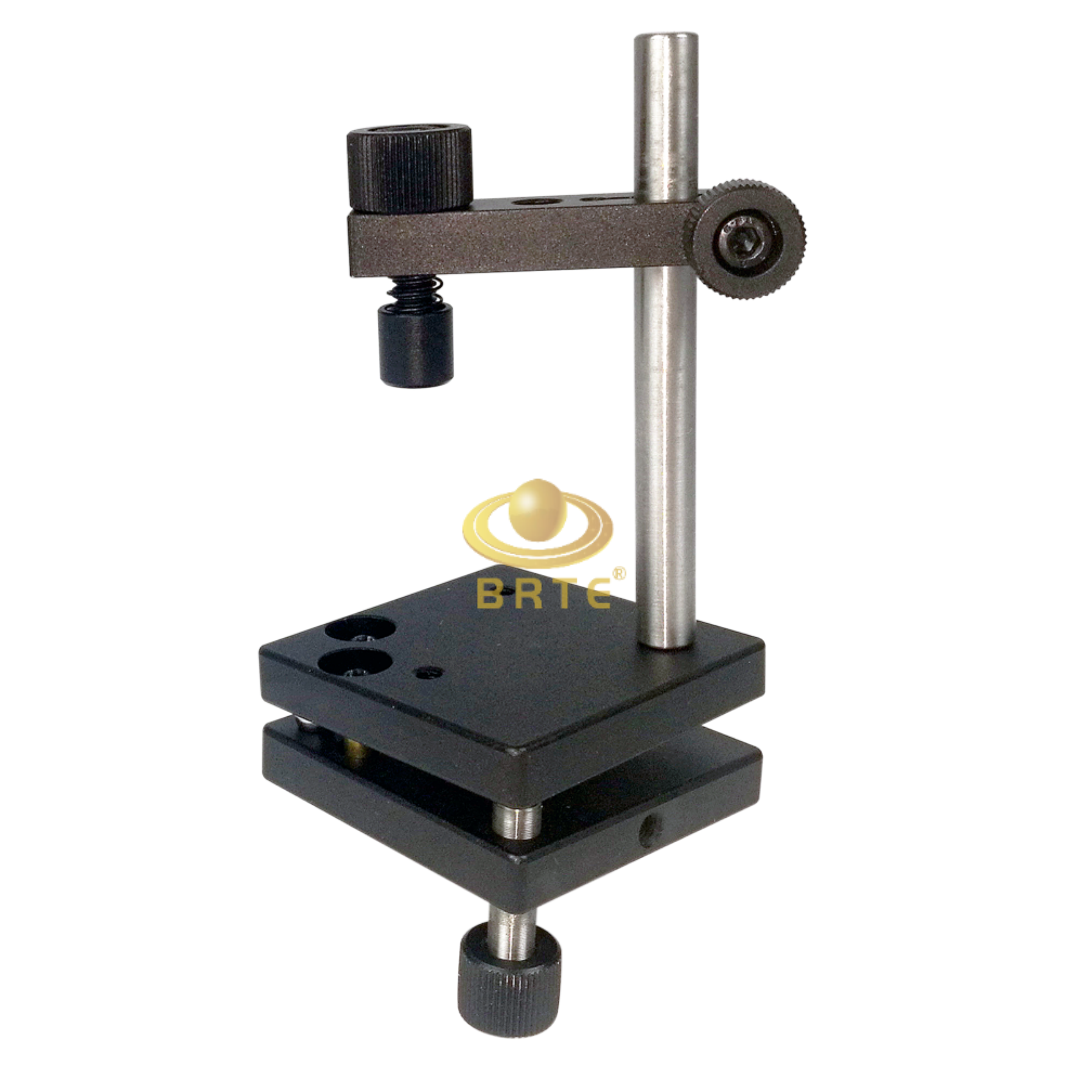

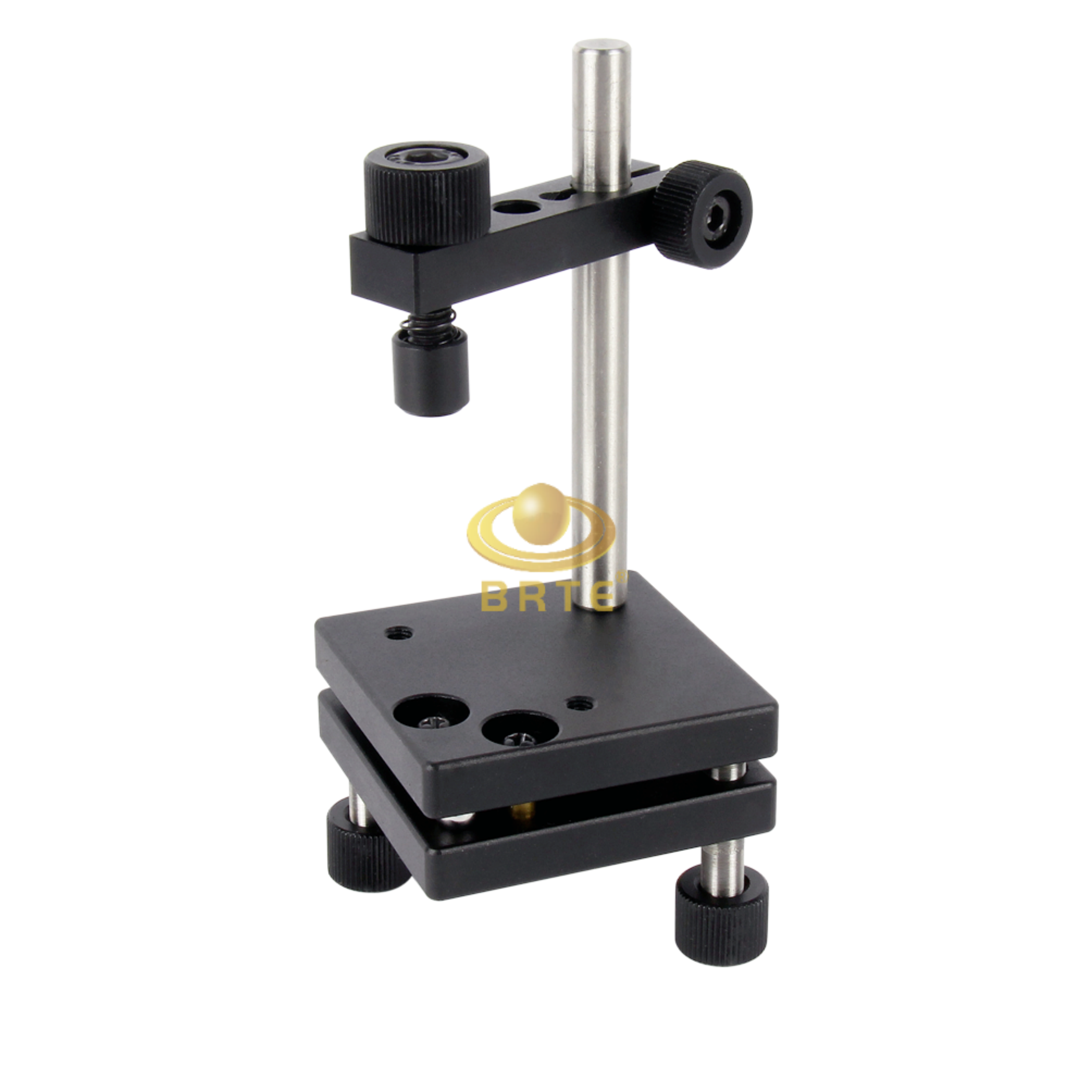

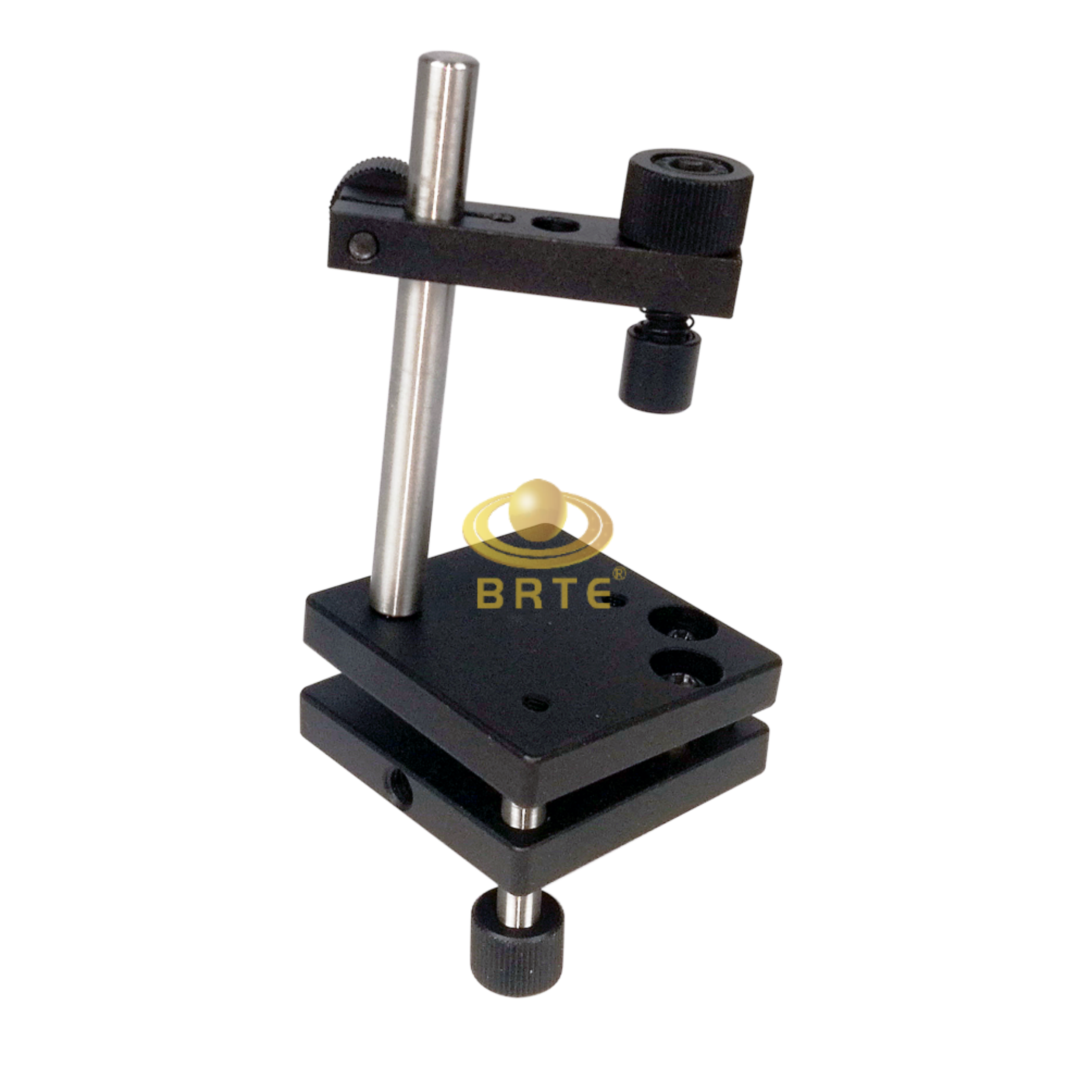

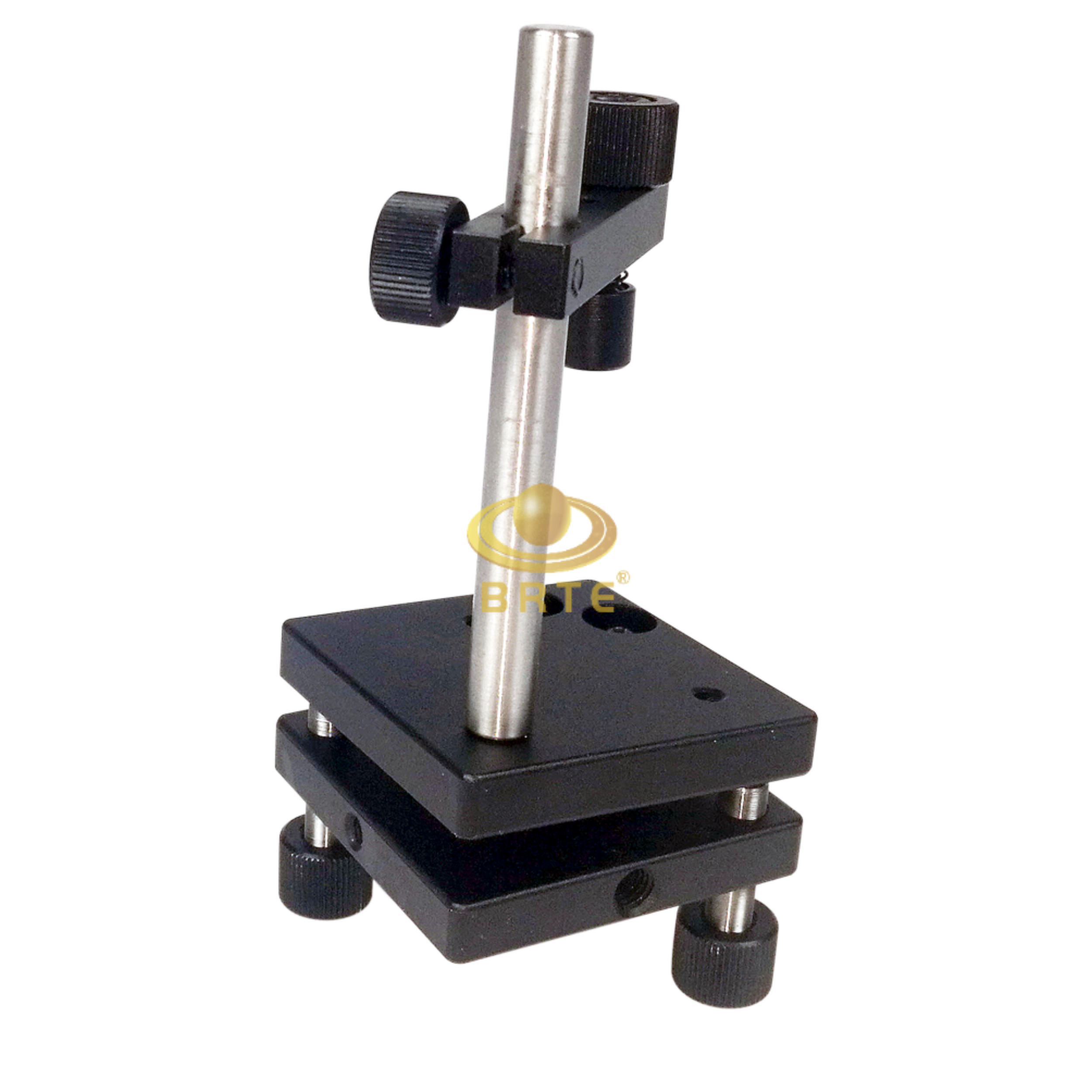

BRTE7MMR150 Two-dimensional Prism Mount
QR code
Detail
PRODUCT CHARACTERISTICS：
Two-dimensional tilt adjustment for prism
M6 X 0.25 fine thread for adjustment by, high precision
Belleville spring for reset, good stability
Adjustable elastic device for clamping till rigidity, convenient and reliable
PRODUCT SPECIFICATIONS：
Product Name | Two-dimensional Prism Mount |
Product Model | BRTE7MMR130 |
Maximun Clamping height | 30 |
Platform size | 30 x 30 |
Adjustment range /° | ±5 |
Weight/g | 94 |

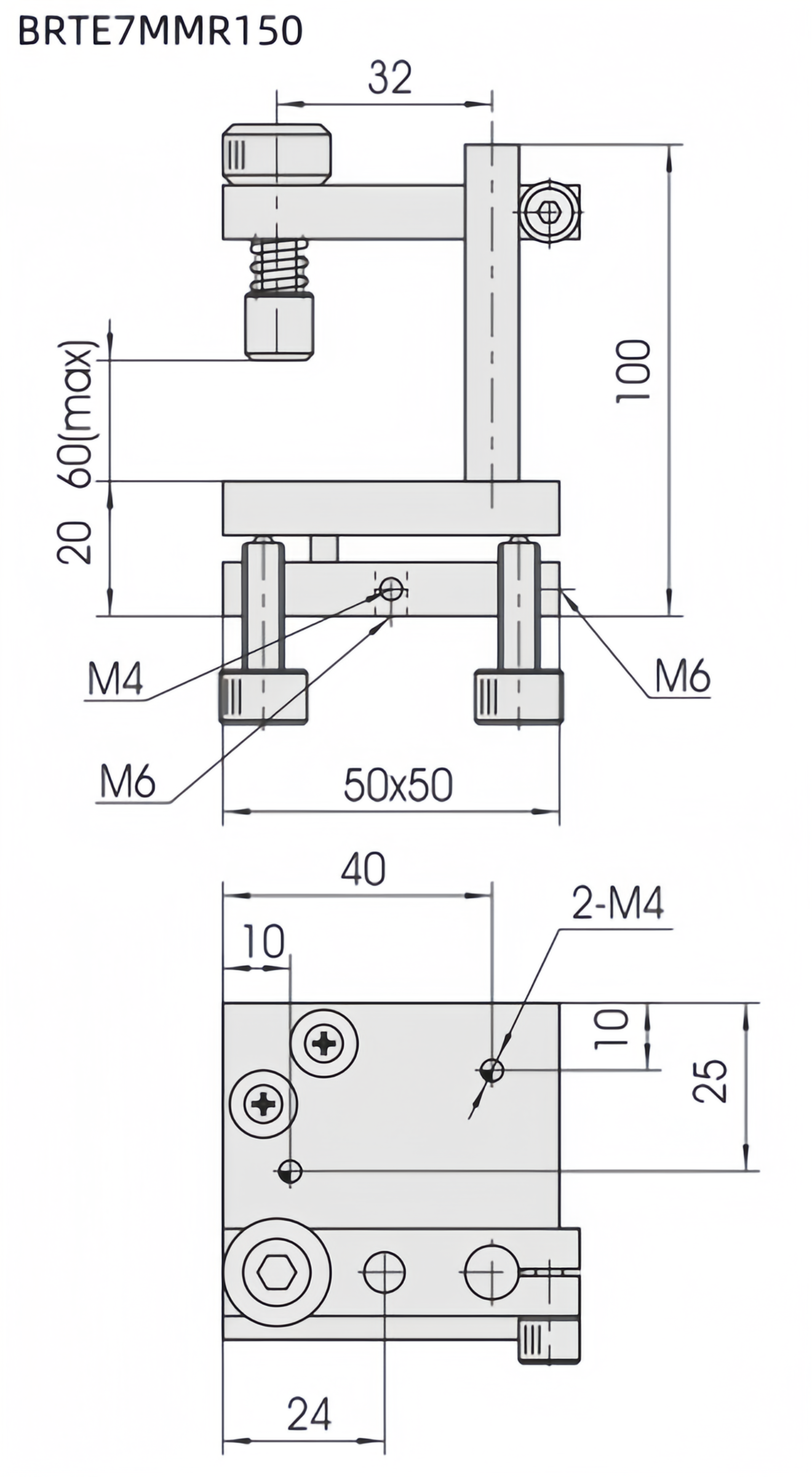

PRODUCT DRAWING AND THE SAME SERIES：
