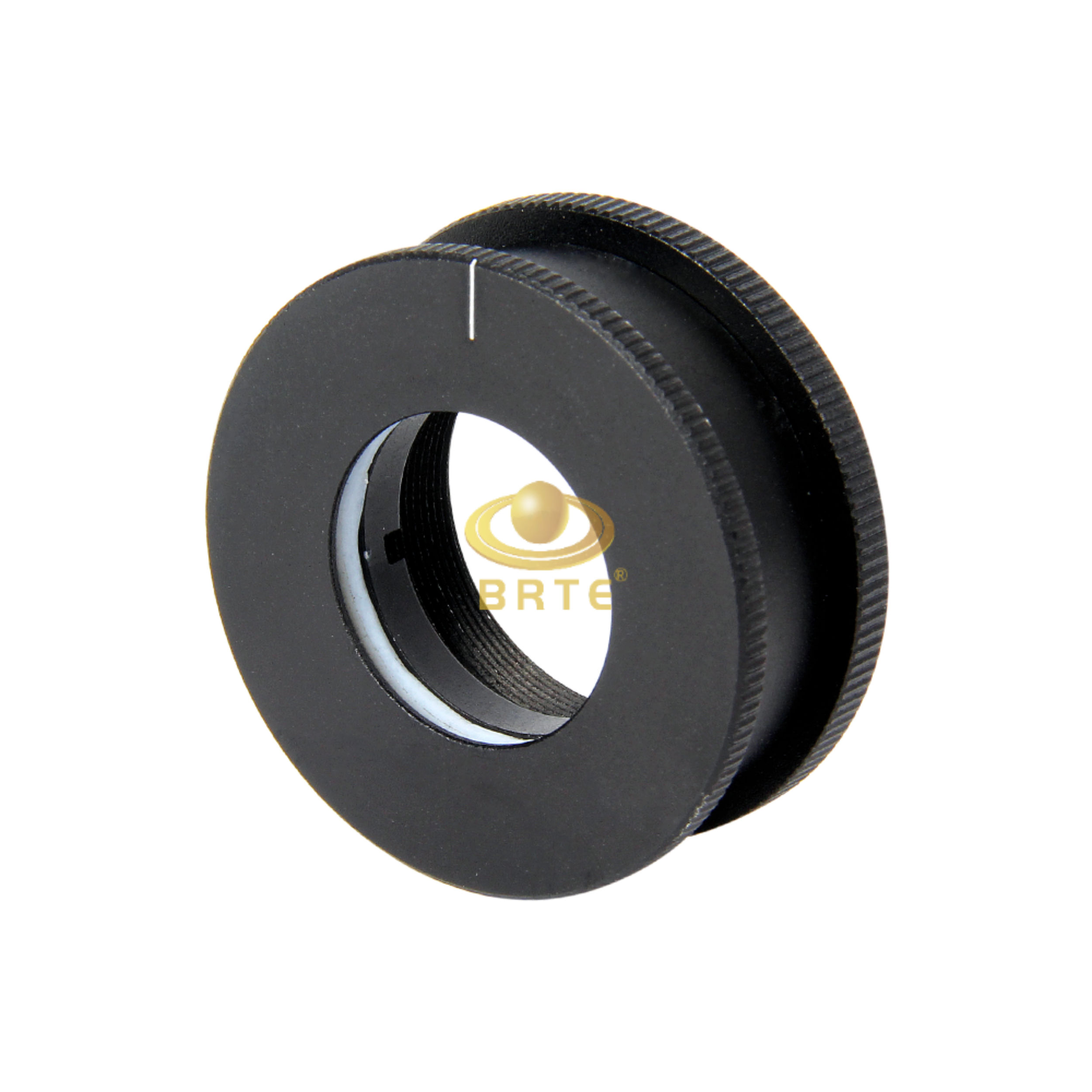

BRTE7MMPH1254 Polarizer Lens Holder
QR code
Detail
PRODUCT CHARACTERISTICS：

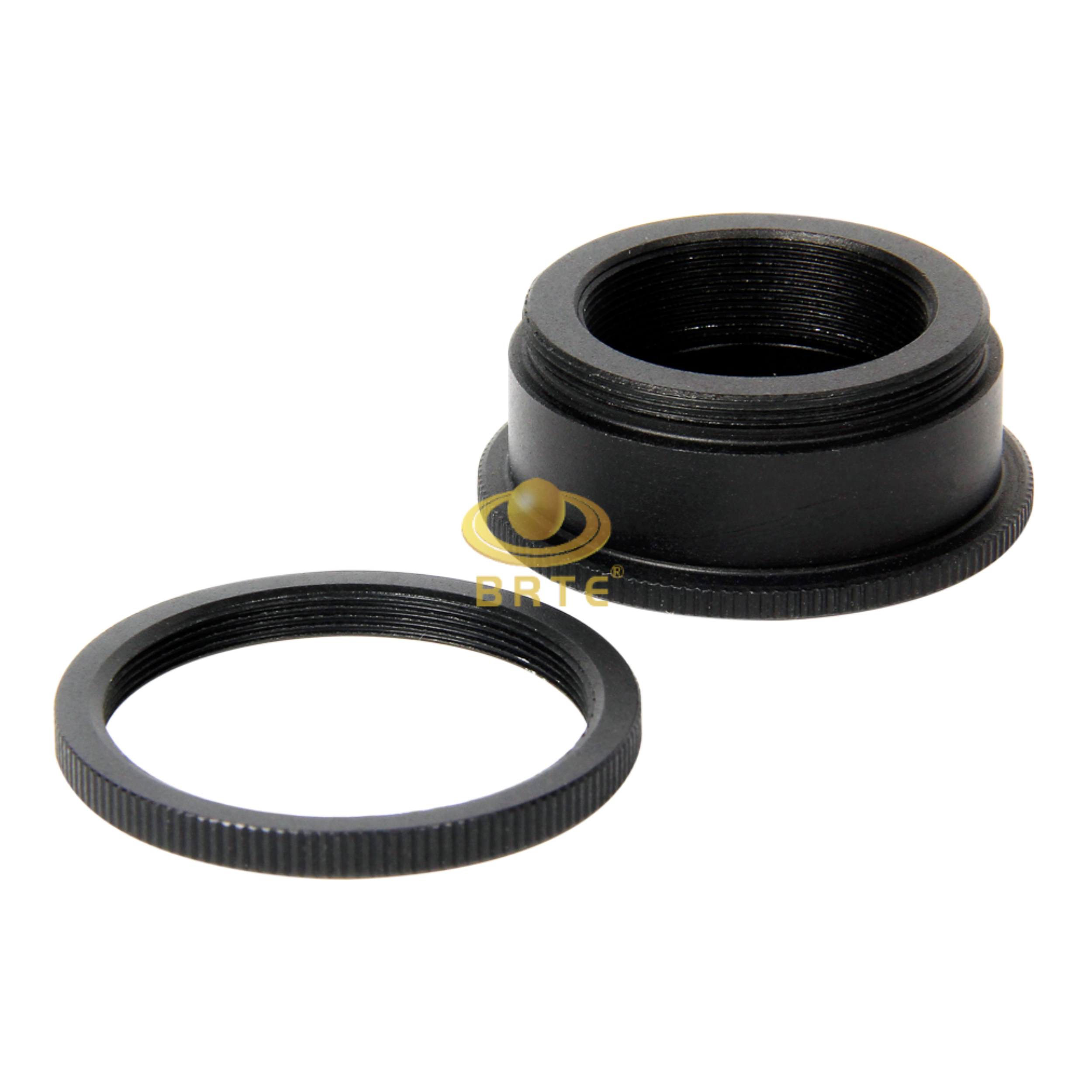

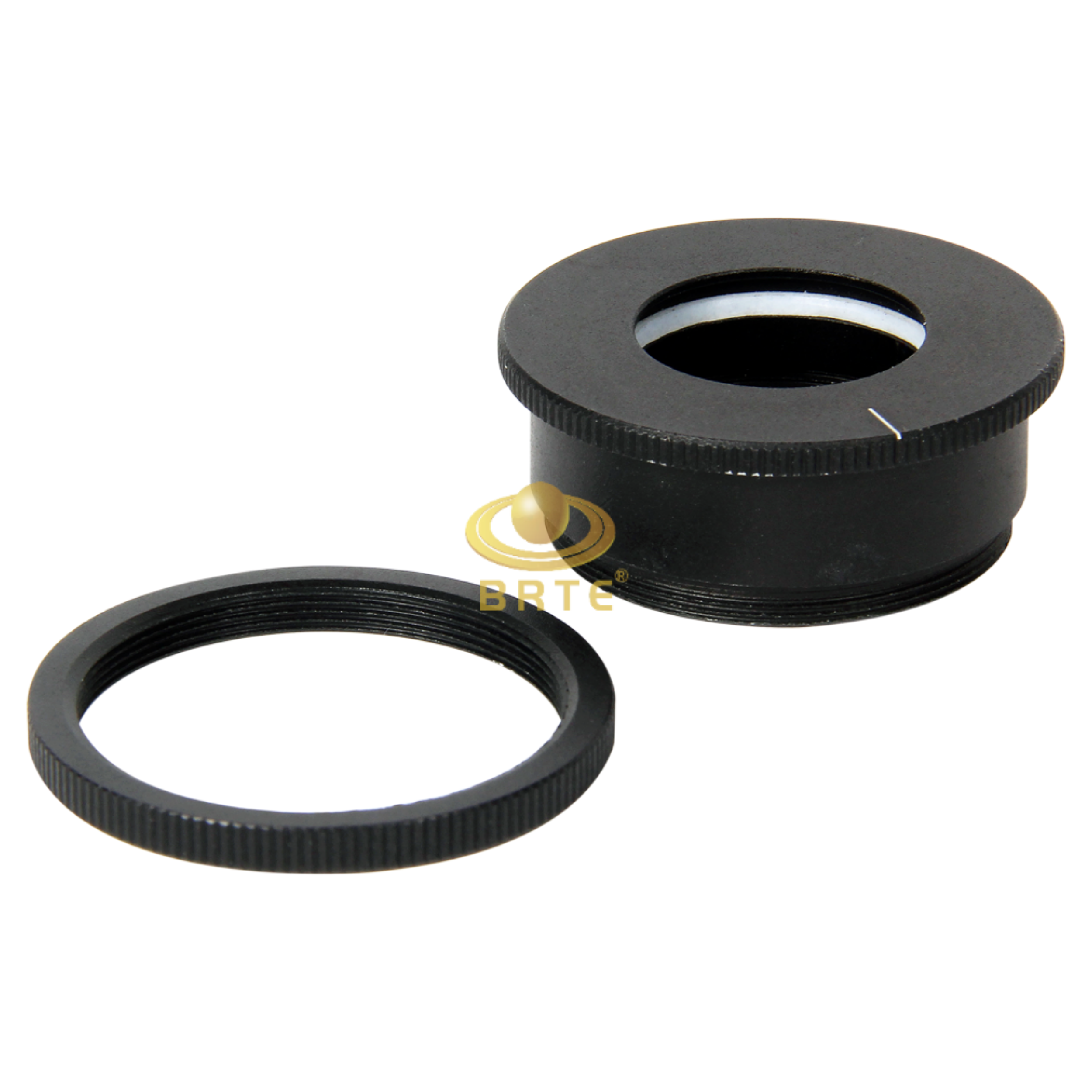

Polarizer fixed by pressing ring, PTFE gasket protecting lens

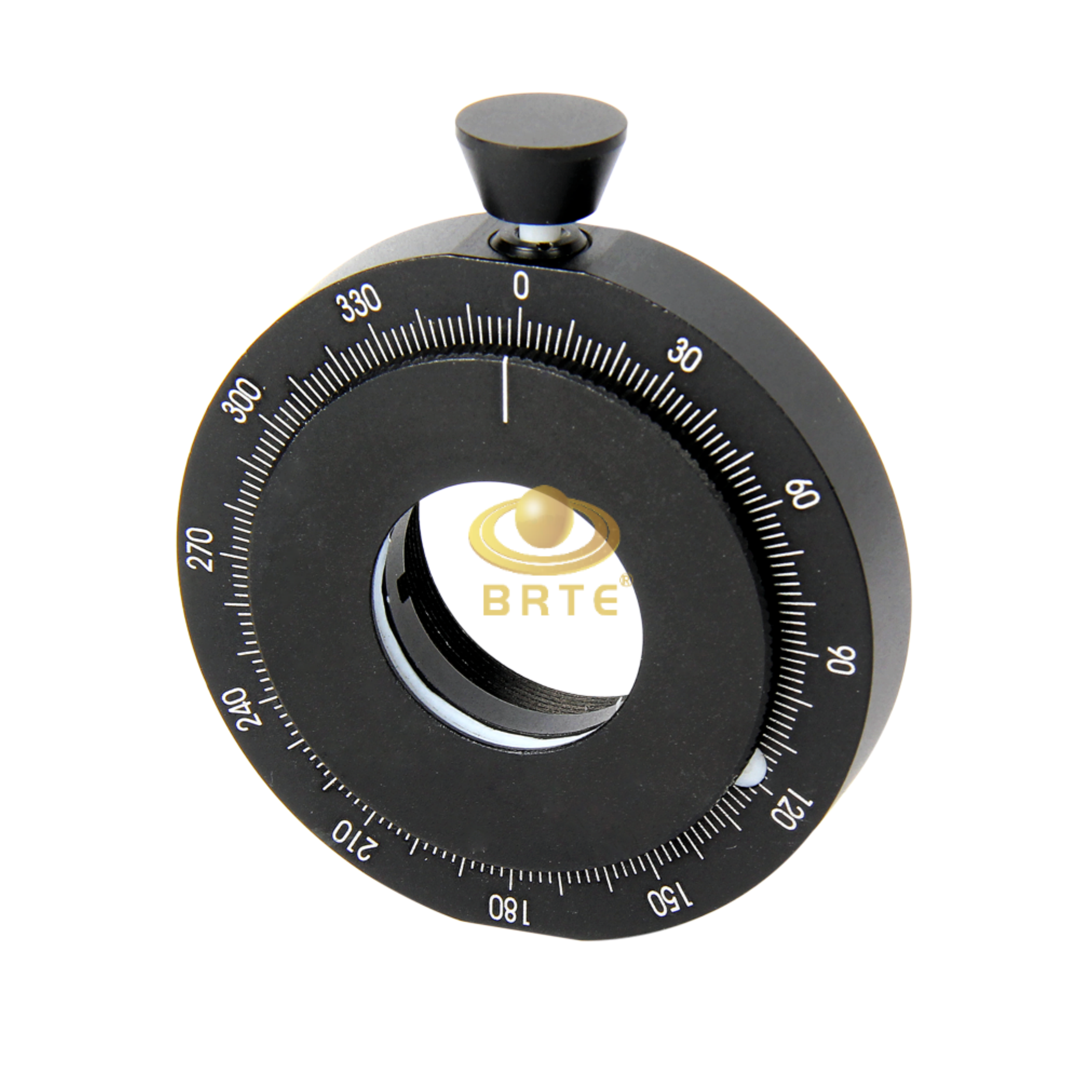

Used with BRTE7MMP1 series Polarizer Holdersfor rotating adjustment easily
A marking line on the circle, can customizedcircumferential characterization in 360°
PRODUCT SPECIFICATIONS：
Product Name | Polarizer Lens Holders |
Product Model | BRTE7MMPH1254 |
Clamping diameter A | 25.4 |
Aperture B | 23 |
External diameter C | 43 |
D | 38 |
Weight/g | 41 |

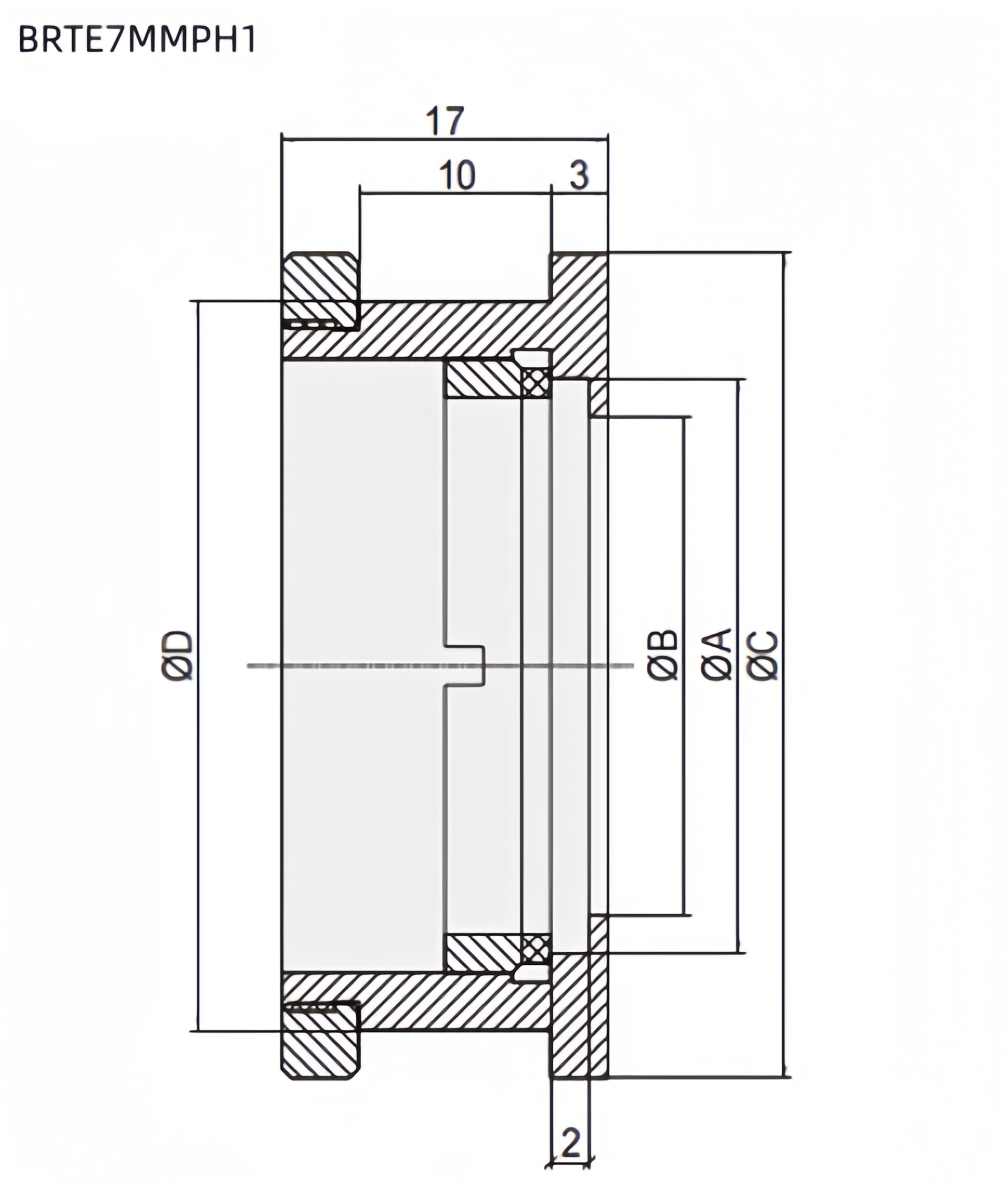

PRODUCT DRAWING AND THE SAME SERIES：
