Product features:

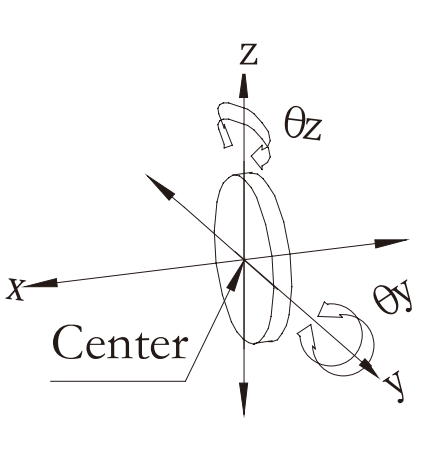

The lens can be adjusted orthogonal coplanarity intwo-dimensions to ensure the optical distance notchanged
M6X0.25 fine thread for adjustment (with copper nut)
Belleville spring for reset. reset force can be adjusted, from zero to rigidity
Three PTFE supporting, protecting lens
Selection parameters:
Model | BRTE7MM0850 | BRTE7MM0880 | BRTE7MM08100 | BRTE7MM08102 | BRTE7MM08106 |
Lens diameter A | 50 | 80 | 100 | 102 | 106 |
Clear aperture B | 48 | 75 | 95 | 97 | 101 |
C | - | 25 | 25 | 50 | 50 |
D | 60 | 75 | 85 | 86 | 86 |
L | 57 | 93 | 113 | 90 | 90 |
H | 102 | 128.5 | 146.5 | 151.5 | 151.5 |
T | 84 | 110 | 130 | 132 | 132 |
Adjustment range | ±3° | ||||
Weight /g | 351 | 462 | 564 | 595 | 577 |
