BRTE7MM07 Two-dimensional Adjustment Mirror Mounts
QR code
Detail
Product features:
M6 × 0.25 fine thread adjustment (partly with copper nut)
High performance tension spring for reset with uniform resetting force to reducestress
Range of adjustment ±3°
Three PTFE supporting, protecting lens
Mounting holes in two directions, suitable for different optical path

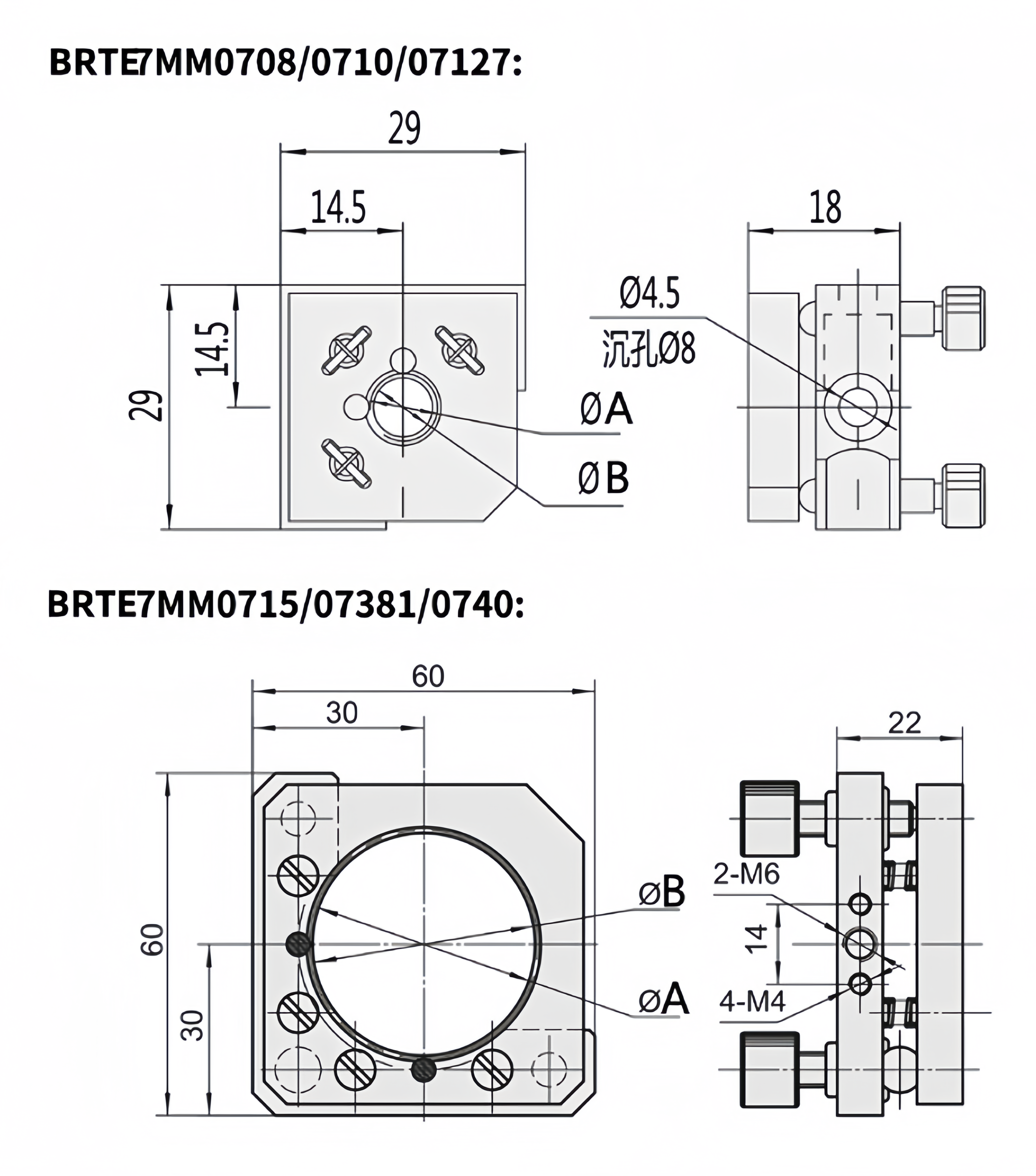

Selection parameters：
| Model | BRTE7MM0708 | BRTE7MM0710 | BRTE7MM07127 | BRTE7MM0715 | BRTE7MM07381 | BRTE7MM0740 |
| Lens Diameter C | 8 | 7 | 30 | 15 | 14 | 40 |
| Clear Aperture D | 10 | 9 | 29 | 38.1（1.5in) | 37.1 | 39 |
| Weight | 12.7(0.5in ) | 11.7 | 28 | 40 | 103 | 101 |
