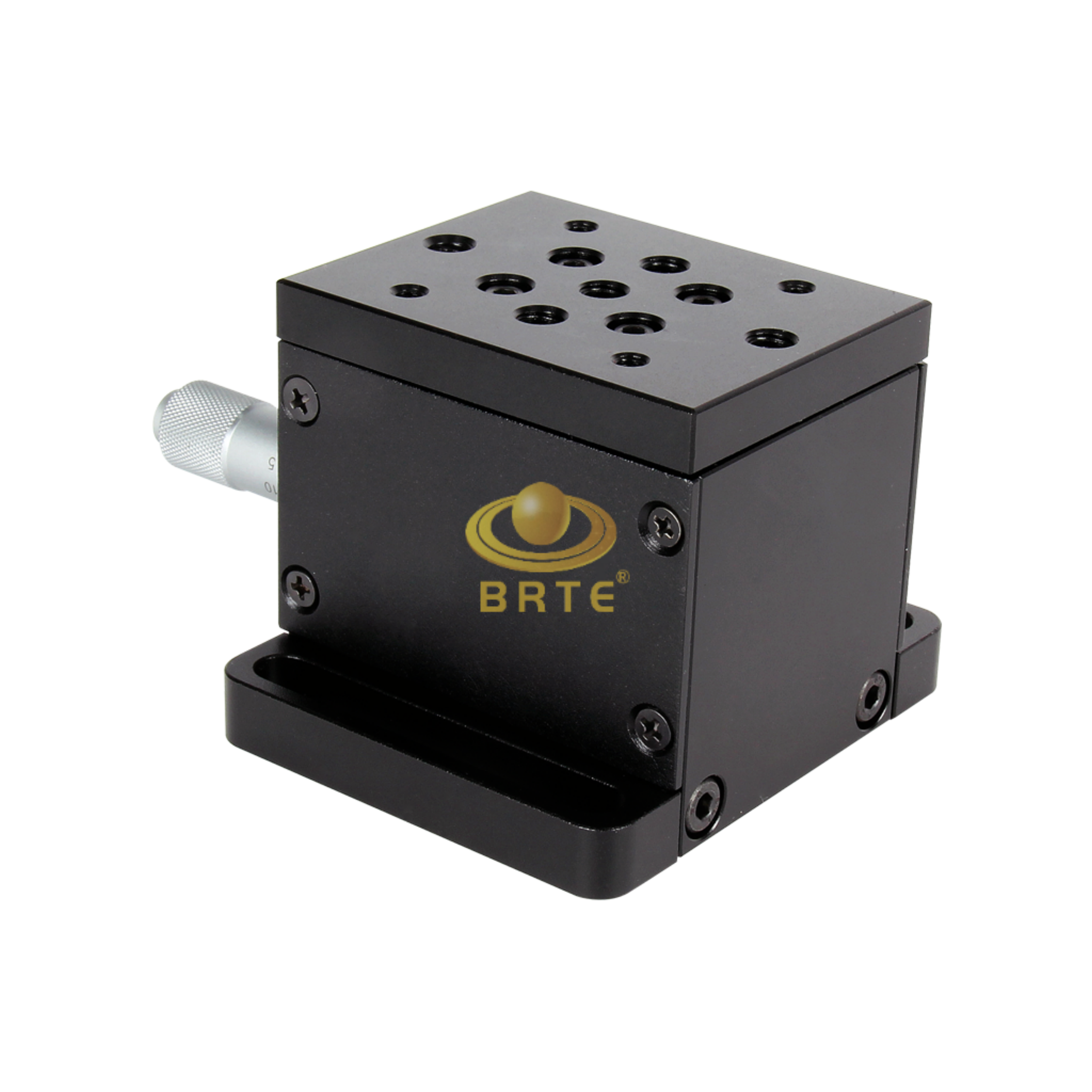

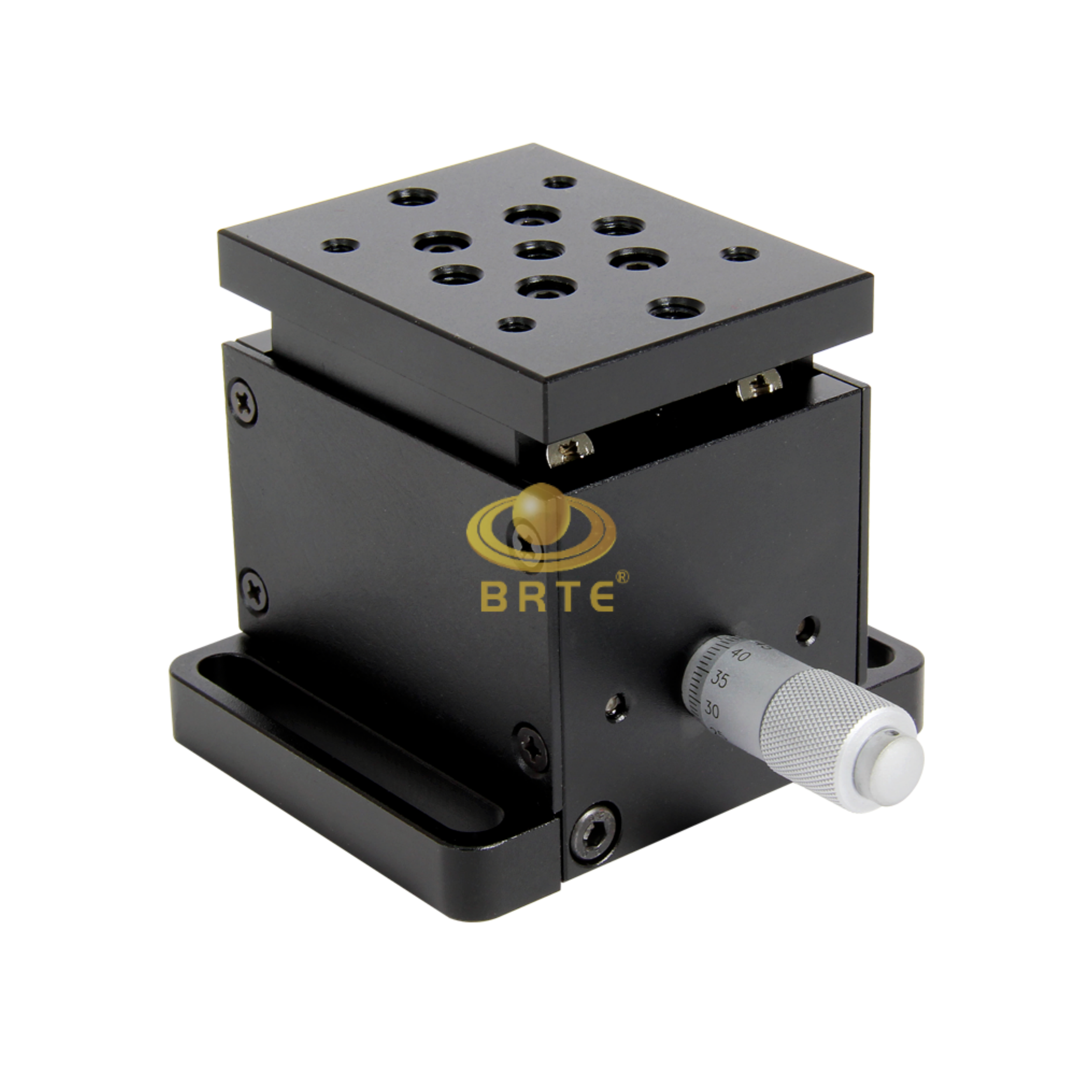

BRTE Z-axis Translation Stage
QR code
Detail
Product features:
Large displacement adjustment driving force
The driving method is precision screw, which is more stable and accurate
Standard hole spacing is distributed on the table and base for easy installation and combination
Selection parameters：

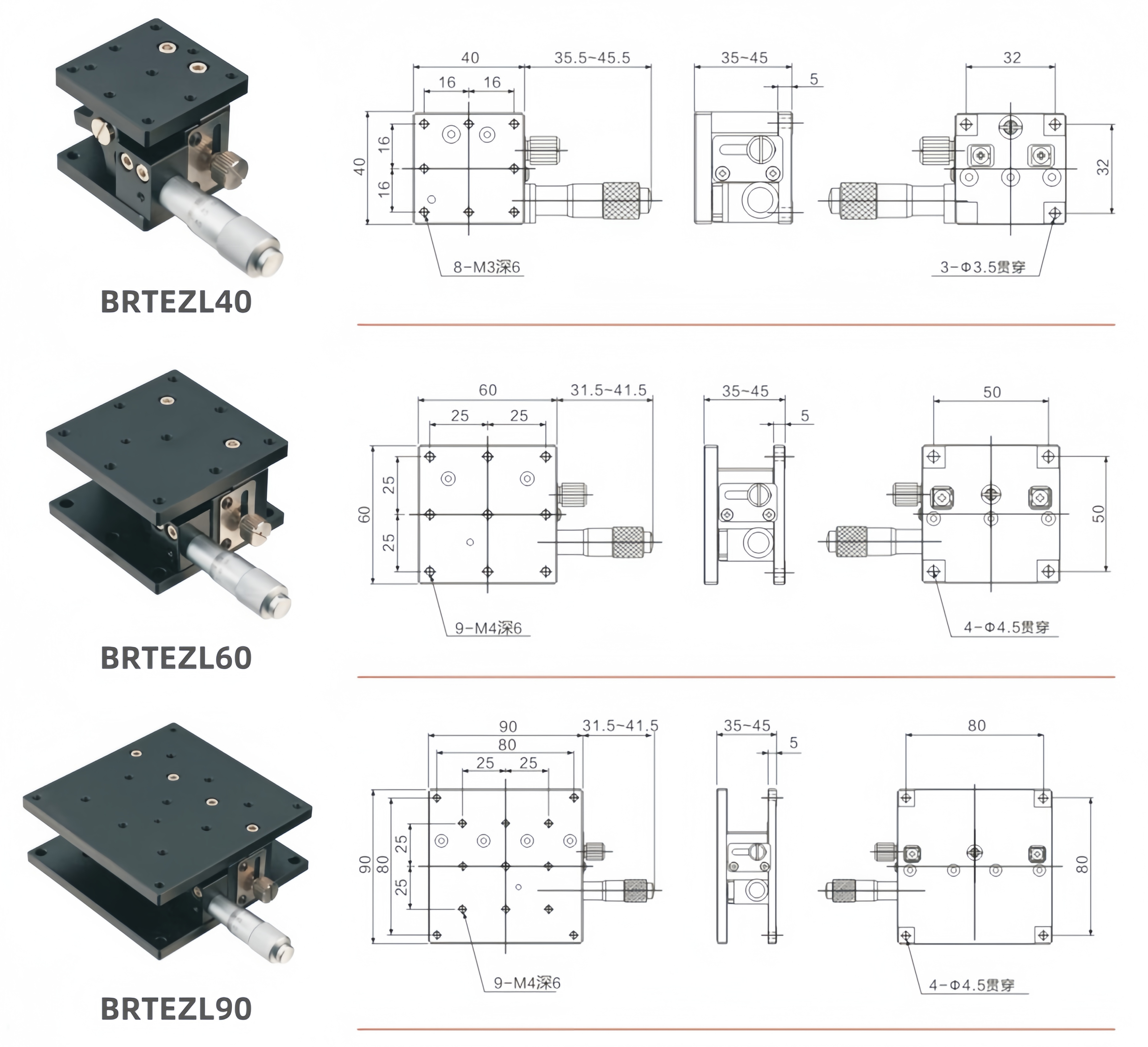

1.Single rail
| Model | BRTEZL40 | BRTEZL60 | BRTEZL90 |
| Table size(mm) | 40*40 | 60*60 | 90*90 |
| Stroke | 10mm | ||
| Load | 19.6N(2kgf） | 20.4N(3kgf） | 49N(5kgf） |
| Minimum scale | 0.01mm | ||
| Accuracy | 0.02mm | ||
| Parallelism | 0.05mm | ||
| Weight | 0.17kg | 0.28kg | 0.45kg |
 | |||

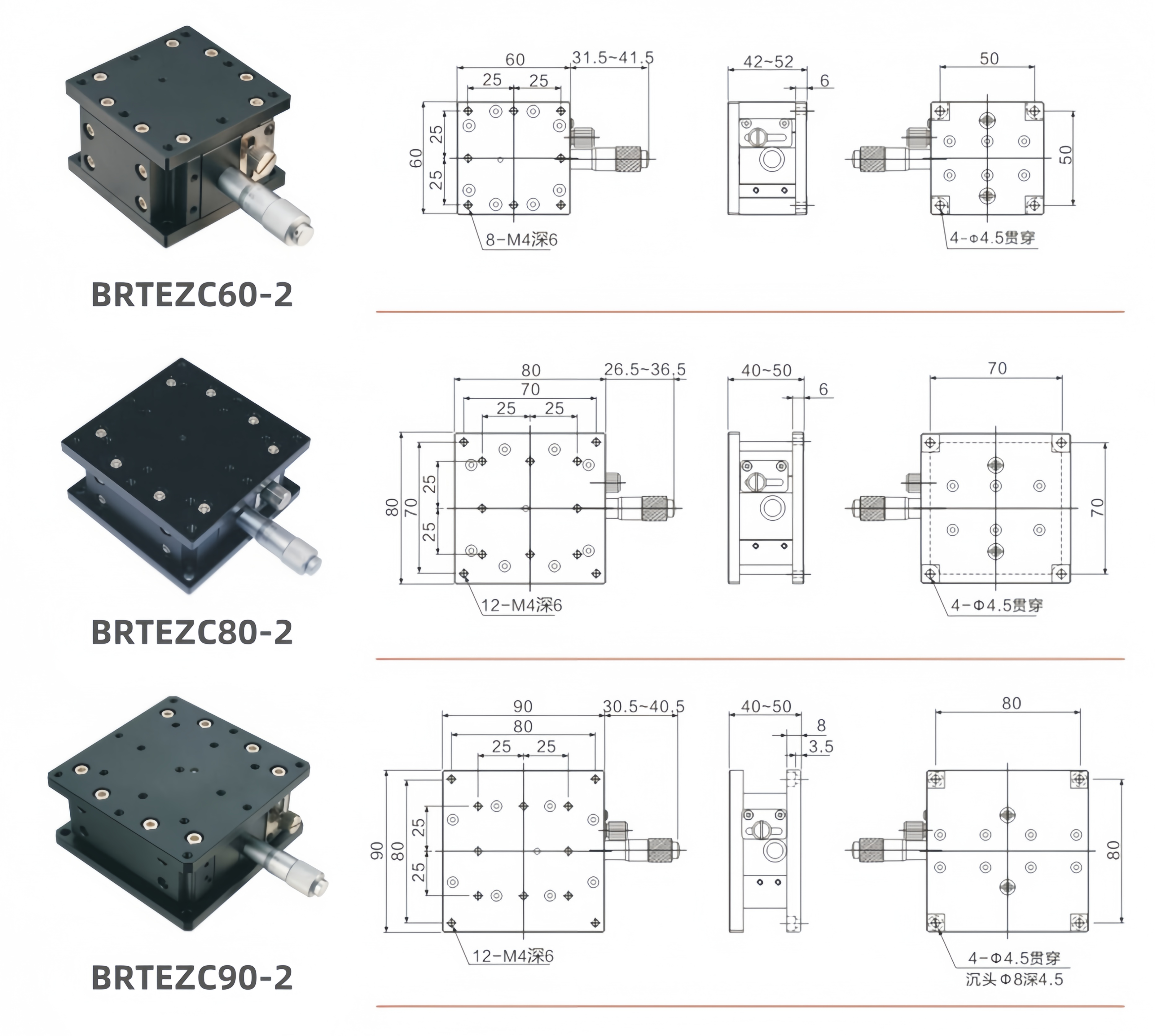

2.Double rail
| Model | BRTEZC60-2 | BRTEZC80-2 | BRTEZC90-2 |
| Table size(mm) | 60*60 | 80*80 | 90*90 |
| Stroke | 10mm | ||
| Load | 58.8N(6kgf） | 88N(9kgf） | |
| Minimum scale | 0.01mm | ||
| Accuracy | 0.02mm | ||
| Parallelism | 0.05mm | ||
| Weight | 0.38kg | 0.58kg | 0.71kg |
 | |||
